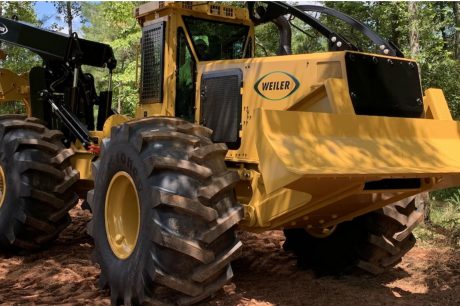

Weiler wheel skidders deliver greater reliability and durability with improved transmission and axles along with a refined electrical system.  The lock up torque converter powershift transmission and independent front and rear differential locks deliver powerful pulling while strong multifunctioning hydraulics improve overall performance.


Engine Model Cat 7.1 Tier 4 Final
Gross Power 275 hp
Engine Speed 2200 rpm
Fuel Capacity 99.6 gal
DEF Capacity 5 gal
Wheelbase 160.7
Weight 49,336 lb
Ground Clearance 24.1
HB Box Grapple Capacity 22 ft^2
HD Box Grapple Opening 143.8
Biomass Grapple Capacity 23.8 ft^2
Biomass Grapple Opening 155
