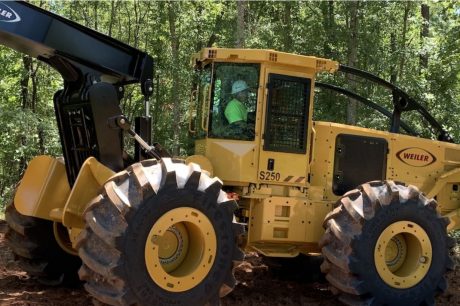

Weiler wheel skidders deliver greater reliability and durability with improved transmission and axles along with a refined electrical system.  The lock up torque converter powershift transmission and independent front and rear differential locks deliver powerful pulling while strong multifunctioning hydraulics improve overall performance.


Engine Model Cat 7.1 Tier 4 Final
Gross Power 203 hp
Engine Speed 2200 rpm
Fuel Capacity 83.2 gal
DEF Capacity 5 gal
Wheelbase 143.8
Weight 45,357 lb
Ground Clearance 21.7
HD Box Grapple Capacity 14.2 ft^2
HD Box Grapple Opening 126.2
Biomass Grapple Capacity 15.7 ft^2
Biomass Grapple Opening 136.3
