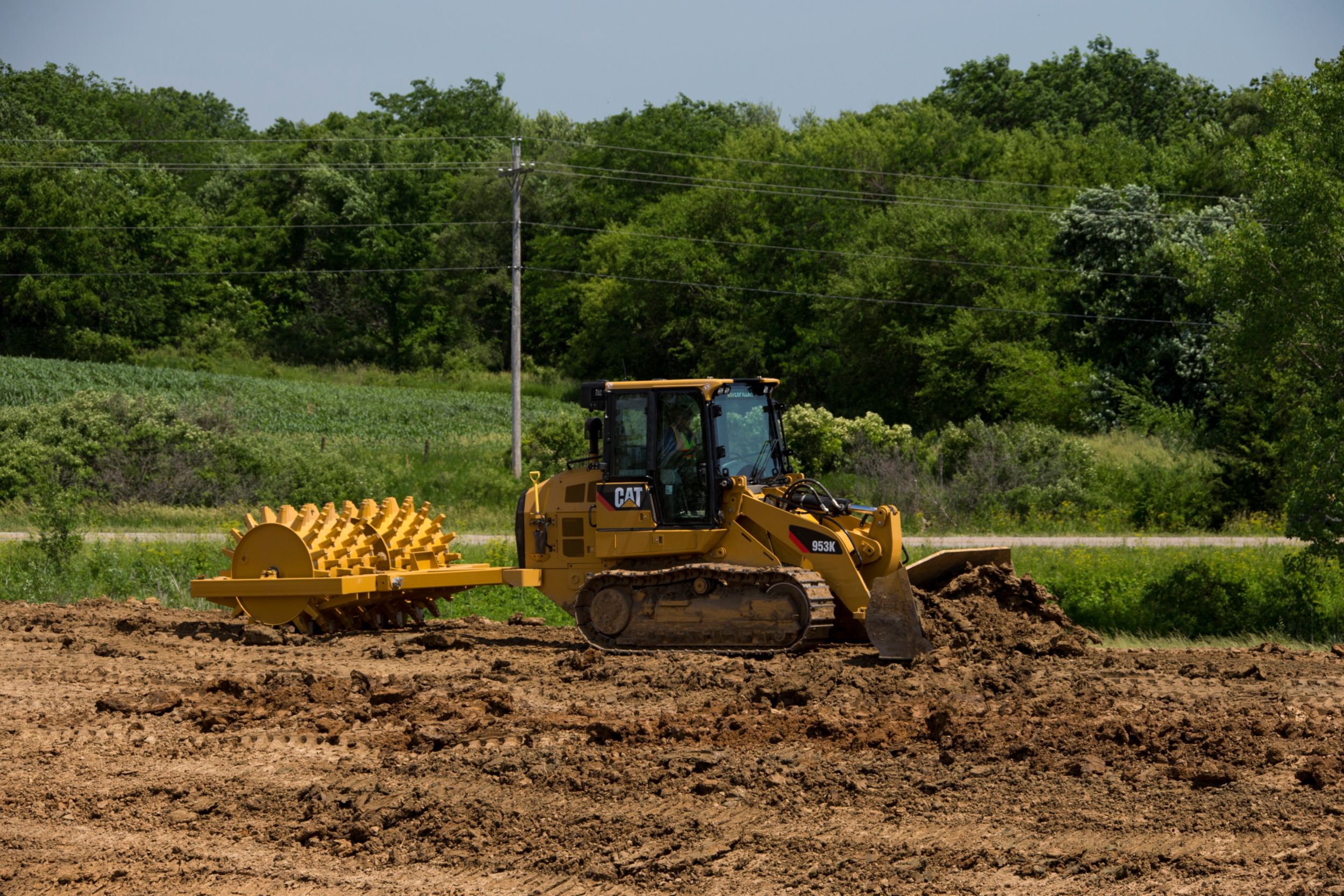

953K Track Loader

Standard Equipment

• Note	Standard and optional equipment may vary. Consult your Cat dealer for details.

• Power Train

  Cat C7.1 diesel engine, turbo charged with Air-To-Air After Cooler (ATAAC) Modular cooling system for engine air intake, oil and water Radiator fan, electronically controlled, hydraulically driven, temperature sensing, on demand Electro Hydrostatic Control (EHC) for transmission with travel and work modes Engine idle shutdown Auto engine speed control Electric fuel pump Water separator Air cleaner dry-type, axial seal with integral precleaner and dust ejection system, electronic filter condition indicator Starting aid, glow plug Cat extended life coolant

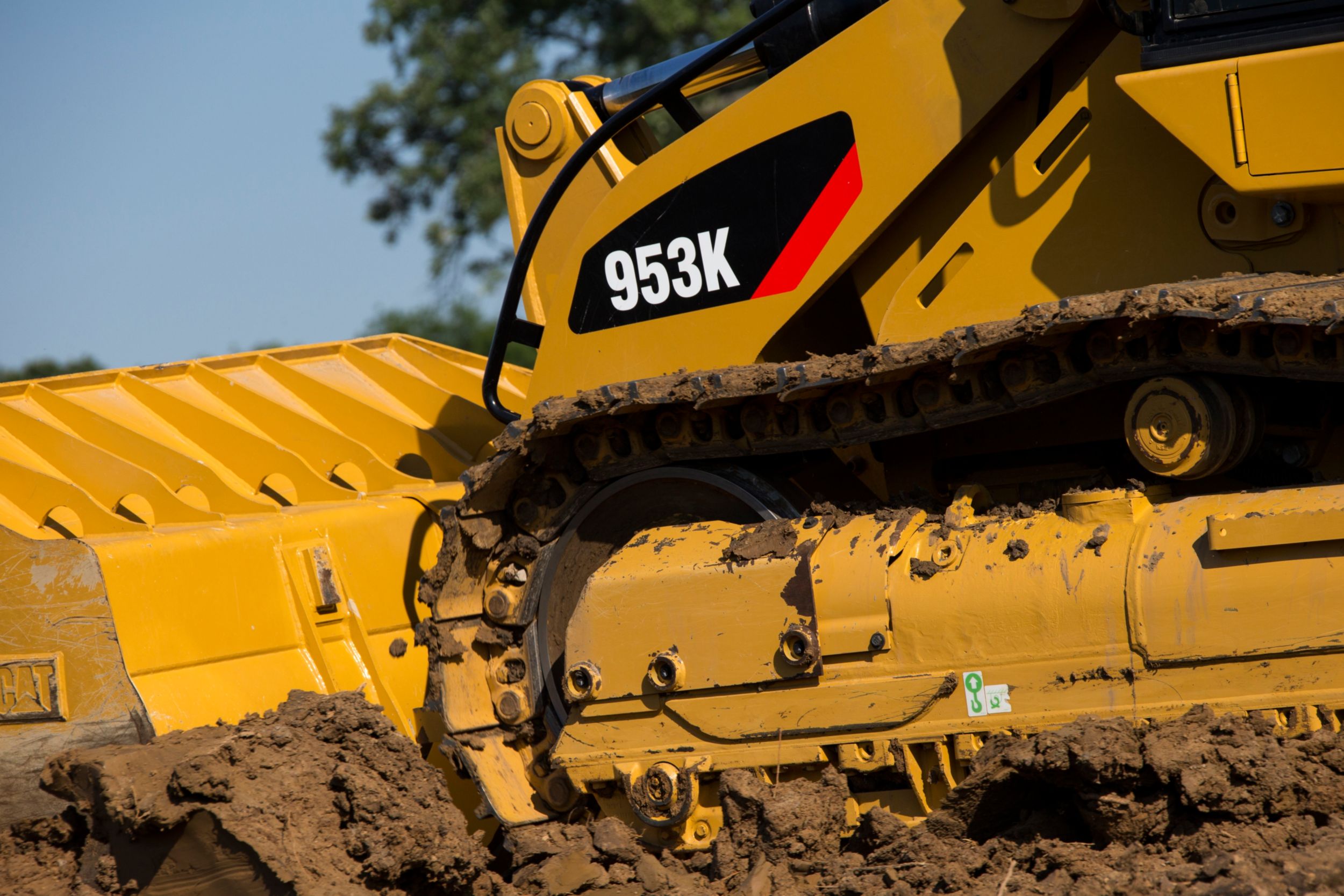

• Undercarriage

  Cat heavy duty undercarriage: 953K (37 sections), 1836 mm (72.3 in) track gauge Track guiding guards, end section Track adjuster, hydraulic Sprocket rims, with replaceable bolt-on tough steel segments Guards, sprocket Six track rollers per side with two upper carrier rollers, lifetime lubricated Idlers, conventional type, lifetime lubricated Oscillating track roller frames

• Electrical

  Alternator, 24V, heavy duty brushless Backup alarm Electric horn Two heavy duty batteries, high output, maintenance free: 900 CCA Switch, main disconnect Starter, electric (heavy duty, 24V)

• Operator Environment

  Pressurized, sound suppressed, ROPS/FOPS cab with tinted glass and right side sliding window Air conditioning and heating Heater/defroster with automatic temperature control Seat, fabric-covered, air suspended, adjustable Adjustable armrests Electro hydraulic, seat mounted control levers with faster processing Seat belt, retractable, with buckling indicator on dash Electronic Monitoring System with gauges for: Engine coolant temperature; Hydraulic oil temperature; Fuel level; Engine oil pressure; Diesel Exhaust Fluid level (when equipped) Engine RPM and gear display Hour meter, electronic Throttle switch rotary with Eco Mode Center brake pedal Independent forward/reverse speed range settings Travel speed limiter, electronic Mirror, rearview, inside, adjustable Radio ready, Includes 24V to 12V converter, speakers, antenna and 12V power outlet Coat hook Storage compartments under left armrest Document holder on right console Floor mat, rubber, heavy duty Windshield washer and wipers, multiple speed front and rear Durable metal roof Parking brake switch and "brake-on" indicator light Fender

• Other Standard Equipment

  Sound suppression, exterior Z-bar loader linkage Load sensing variable displacement implement pump Implement cylinders with sensors Operator programmable lift and tilt kickouts Engine enclosure with lockable doors Radiator core 6.5 fins-per-inch, debris resistant Hinged radiator guard and swing out fan Full bottom guards Ecology drains on hydraulic oil tank Product Link ready Oil sampling valves Cat XT hoses HYDO Advanced 10

Optional Equipment

• Note	Standard and optional equipment may vary. Consult your Cat dealer for details.

• Power Train

  Cat C7.1 diesel engine with engine mounted aftertreatment to meet U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 Final emission standards OR Cat C7.1 diesel engine to meet China Nonroad Stage III, India Bharat III, Eurasian Economic Union Stage IIIA Demand fan, reversing Air inlet, precleaner, turbine Transmission control, V-lever or joystick

• Operator Environment

  Standard cab with four halogen lights (two forward-facing roof mounted, two rear-facing integrated into air conditioning unit) Deluxe cab with sliding windows, Bluetooth radio microphone, eight LED lights (four forward-facing, two sideways facing, two rear-facing integrated into air conditioning unit) Seat, cloth, air suspension, no side-to-side isolator Radio, AM/FM/AUX/USB/Bluetooth Easy access package (grab irons and steps) Cab air precleaner Front light guards Windshield protection

• Hydraulics

  Hydraulic oil, biodegradable Hydraulics Packages: General Purpose - Two-valve, joystick Three-valve, joystick; Two-valve, two levers; Three-valve, two levers Hydraulics Packages: Multi-Purpose - Three-valve, joystick; Four-valve, joystick

• Fuel Systems

  Fast fill fuel tank Fuel tank refueling pump

• Undercarriage

  Idler guard Idler guard, ship hold Full length track roller guard Full length track roller guard, heavy duty Track Groups (37 sections) - Heavy Duty Track Groups: 380 mm double grouser, 380 mm double grouser, sealed; 480 mm double grouser, 480 mm double grouser, center hole, 800 mm double grouser Track Groups (37 sections) - SystemOne Track Groups: 380 mm double grouser, 480 mm double grouser

• Buckets

  General Purpose: 1.7 m³, flush General Purpose: 1.8 m³ General purpose: 1.8 m³, full edge General Purpose: 1.8 m³, heavy duty General Purpose: 2.1 m³, Performance Series Multi-Purpose: 1.8 m³ Wide: 2.2 m³, flush Landfill: 2.3 m³ Landfill: 2.1 m³, heavy duty

• Starters, Batteries And Alternators

  Cold weather package, 120V - two 12V batteries (1,400 CCA), 120V engine coolant heater, ether starting aid Antifreeze -50 degrees Celcius

• Other Attachments

  Counterweight, light, 230 kg (507 lb) Counterweight, additional, 220 kg (485 lb) Ripper, multi-shank Hitch, ripper Striker bars, rear Additional work tools: Fusion Quick Coupler, Blades, Forks, Material handling arms, Rakes, Trim blade or two-way dozer

• Electrical

  Rotating beacon

• Maintenance And Related Attachments

  Fuel tank sediment pump High speed oil change system Service package, extended: Manual hydraulic system enabling cab tilt and lock at 30 degrees safely in the field; Windshield, sealed; Shovel holder (shovel not included)

• Technology Products

  Product Link - Satellite Product Link - Cellular Grade Control receiver mast

• Special Arrangements

  Waste Package, Heavy Duty Waste Package, Heavy Duty, Enhanced Cleaning Ship Hold Package, Heavy Duty Partial Steel Mill Package, Heavy Duty Low Ground Pressure Package, Heavy Duty
