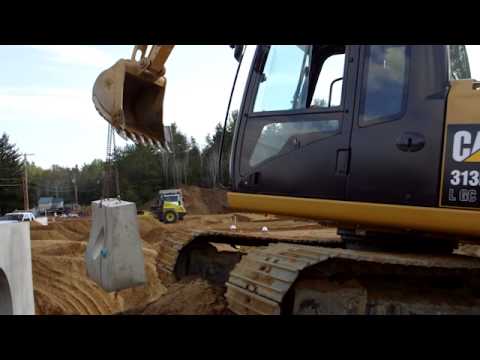

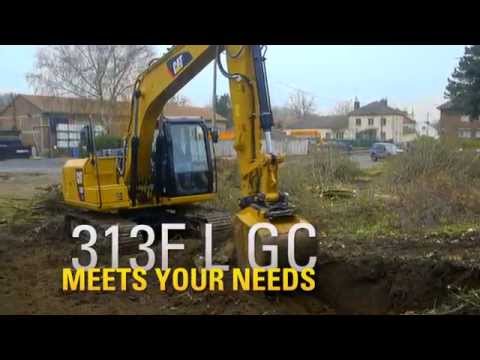

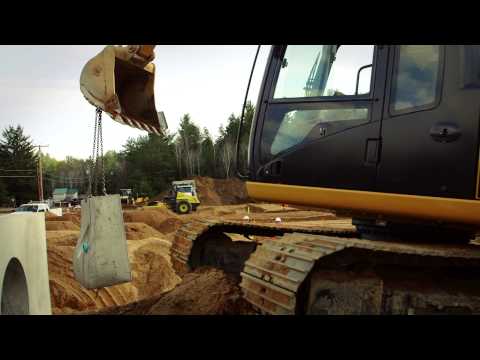

The Cat ® 313F GC excavator is a powerful and reliable, low-cost-per-hour solution for your light to medium duty application. Featuring a fuel-efficient Cat C3.4B engine, simplified hydraulic system, and robust frames and components, the 313F GC provides you savings and peace of mind.
| Net Power - ISO 9249 | 70HP |
| Engine Model | C3.4B |
| Engine Power - ISO 14396 | 74HP |
| Bore | 3.9in |
| Stroke | 4.33in |
| Displacement | 207in³ |
| Operating Weight | 29300lb |
| Maximum Digging Depth | 19.75ft |
| Boom | Reach 4.65 m (15'3") |
| Stick | R3.0 (9'10") |
| Bucket | GD .53 m³ (.69 yd³) |
| Maximum Reach at Ground Level | 28.25ft |
| Maximum Cutting Height | 28.5ft |
| Maximum Loading Height | 20.83ft |
| Minimum Loading Height | 5ft |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 19.17ft |
| Maximum Vertical Wall Digging Depth | 17.42ft |
| Bucket Digging Force - ISO | 21400lbf |
| Stick Digging Force - ISO | 12800lbf |
| Main System - Maximum Flow | 240 l/min (63.4 gal/min) |
| Maximum Pressure - Equipment | 4424psi |
| Maximum Pressure - Swing | 3336psi |
| Maximum Pressure - Travel | 4424psi |
| Swing Speed | 11.7r/min |
| Maximum Swing Torque | 22791ft·lbf |
| Fuel Tank Capacity | 66gal (US) |
| Cooling System | 4.7gal (US) |
| Engine Oil | 2.1gal (US) |
| Swing Drive | 0.8gal (US) |
| Final Drive - Each | 0.8gal (US) |
| Hydraulic System - Including Tank | 43.3gal (US) |
| Hydraulic Tank | 23.9gal (US) |
| Boom | Reach 4.65 m (15'3") |
| Stick | R3.0 (9'10") |
| Bucket | GD .53 m³ (.69 yd³) |
| Shipping Height - Top of Cab | 10.33ft |
| Shipping Length | 25ft |
| Shipping Length - with Blade | 26.17ft |
| Tail Swing Radius | 7ft |
| Counterweight Clearance | 2.92ft |
| Ground Clearance | 1.42ft |
| Track Length | 12.33ft |
| Length to Center of Rollers | 10ft |
| Track Gauge | 6.5ft |
| Transport Width | 8.83ft |
