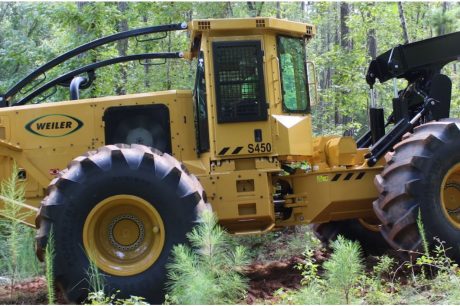

S450

Weiler wheel skidders deliver greater reliability and durability with improved transmission and axles along with a refined electrical system.  The lock up torque converter powershift transmission and independent front and rear differential locks deliver powerful pulling while strong multifunctioning hydraulics improve overall performance.

General

Engine Model Cat 7.1 Tier 4 Final
Gross Power 250 hp
Engine Speed 2200 rpm
Fuel Capacity 99.8 gal
DEF Capacity 5 gal
Wheelbase 155.1
Weight 48,333 lb
Ground Clearance 24.1
HD Box Grapple Capacity 19 ft^2
HD Box Grapple Opening 135
Biomass Grapple Capacity 20.8 ft^2
Biomass Grapple Opening 150
