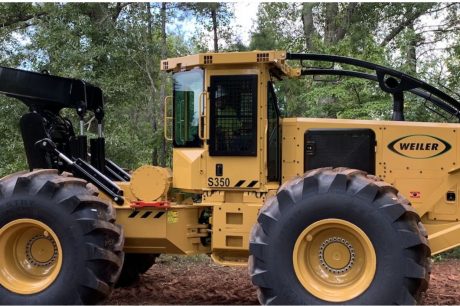

Weiler wheel skidders deliver greater reliability and durability with improved transmission and axles along with a refined electrical system.  The lock up torque converter powershift transmission and independent front and rear differential locks deliver powerful pulling while strong multifunctioning hydraulics improve overall performance.


Engine Model Cat 7.1 Tier 4 Final
Gross Power 225 hp
Engine Speed 2200 rpm
Fuel Capacity 99.8 gal
DEF Capacity 5 gal
Wheelbase 149.4
Weight 45,888 lb
Ground Clearance 21.7
HD Box Grapple Capacity 16.6 ft^2
HD Box Grapple Opening 127
Biomass Grapple Capacity 18 ft^2
Biomass Grapple Opening 145
