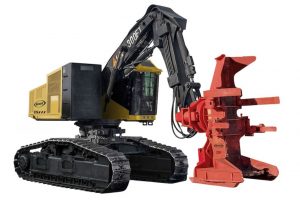

Weiler track feller bunchers provide industry leading lift capacity throughout full reach, a key benefit in large timber. A robust undercarriage utilizes proven components, customized for demanding forestry conditions while maintaining industry leading ground clearance. Both reduced tail swing and full tail swing machines are available as tilting or non-tilting to meet a variety of application requirements.
| Engine Model | Cat C9 Tier 3 |
| Gross Power | 303 hp |
| Ground Clearance | 35" |
| Weight w/out Head | 81,738 lb |
| Engine Displacement | 537 in^3 |
| Max Flow | 250 gpm |
| Max Reach | 28'1" |
| Lift at Max Reach | 19,111 lb |
| Tractive Effort | 104,000 lb |
| Undercarriage Size | 349 HD HEX |
| Undercarriage Pitch | 8.5" |
| Track Gauge | 113" |
| Track Length | 221" |
| Fuel Tank Capacity | 312 gal |
| Engine Oil Capacity | 10.3 gal |
| Hydraulic System Capacity | 97.7 gal |
| Transport Width | 11'10" |
| Height | 13' |
| Length (w/201 saw) | 39'8" |
