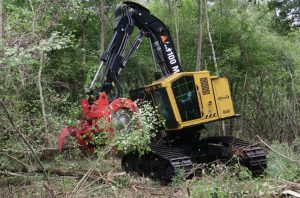

The Weiler B458 is a leveling machine for steeper terrain and excels in select or clear-cut logging. The B458 provide a leading combination of lift capacity, swing torque, and drawbar. Multi-function performance is achieved through dedicated pumps and optimized circuit configurations. The B458 has an extended track roller frame option that includes two additional bottom rollers for a total of eleven, enhancing overall machine stability in steep terrain. In addition, a standard or heavy counterweight option is available for a diversity of harvesting conditions. Unobstructed ground clearance enables unimpeded travel over stumps, rocks, and other debris.
Engine Model | Cat C9.3 Tier 4 Final |
Gross Power | 298 hp |
Ground Clearance | 35" |
Weight w/out Head | 79,221 lb |
Engine Displacement | 568 in^3 |
Max Flow | 322 gpm |
Max Reach | 26'10" |
Lift at Max Reach | 13,918 lb |
Tractive Effort | 81,229 lbf |
Undercarriage Size | 336 HD HEX |
Undercarriage Pitch | 8.5" |
Track Gauge | 114" |
Track Length | 191" |
Fuel Tank Capacity | 216 gal |
Engine Oil Capacity | 10.6 gal |
Transport Width | 11'11" |
Height | 12'11" |
Length (w/201 saw) | 34'1" |
