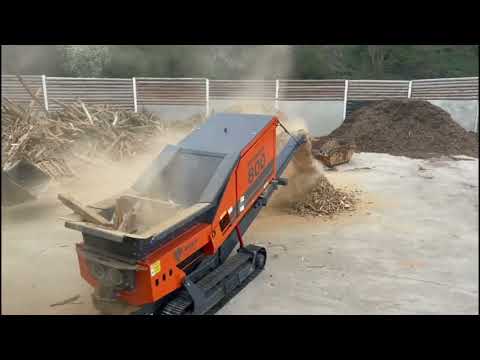

The EKOMAXX 800 is an intermediate class shredder equipped with a Volvo 320 horsepower Tier 4 final diesel engine. This unit is only available with paddle shafts and best suited for applications processing green waste, wood, household and commercial waste, tires, paper, and cardboard.
This mobile shredder offers the same advantages that are a part of the standard ARJES design. A SCU control system that includes remote control has predefined shredding programs that adjust the rotation and speed of the shafts. Additionally, the quick change shaft system simplifies the time for installation and removal of the shafts.
Manual insertable plates are standard and assist with regulating the final product size. In case of wear, the plates can be turned several times before needing replaced.
An over-belt magnet with water sprinkling system is standard providing a strong solution for effective separation of ferrous material.
| Width | 96.45" (transport) |
| Height | 122" (transport) |
| Length | 319" (transport) |
| Weight | 46,297 pounds |
| Fuel Tank | 105 gallons |
| Power | 320 HP |
| Volvo 320 horsepower engine - Tier 4 Final |
| 105 gallon fuel tank |
| Hydraulically adjustable tilting hopper |
| Quick change cassette system |
| Manually insertable waveform plates (regulates final product size) |
| SCU Control System - predefined shredding programs (adjust rotation and speed of shafts) |
| Wireless radio remote control |
| Steel track undercarriage |
| Over-belt magnet and water sprinker system |
