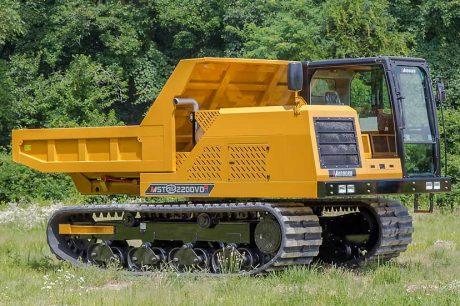

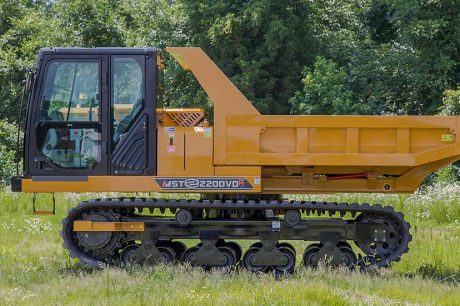

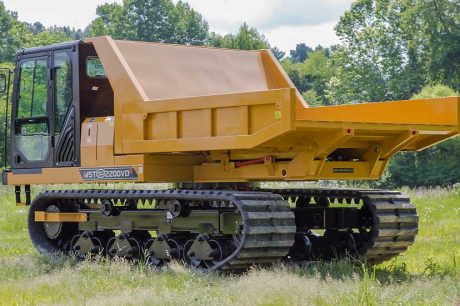

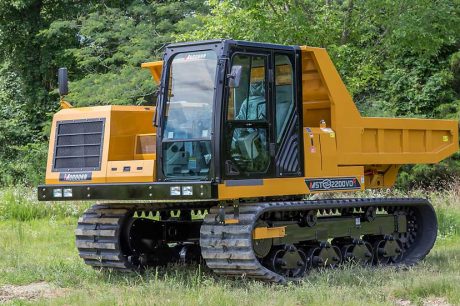

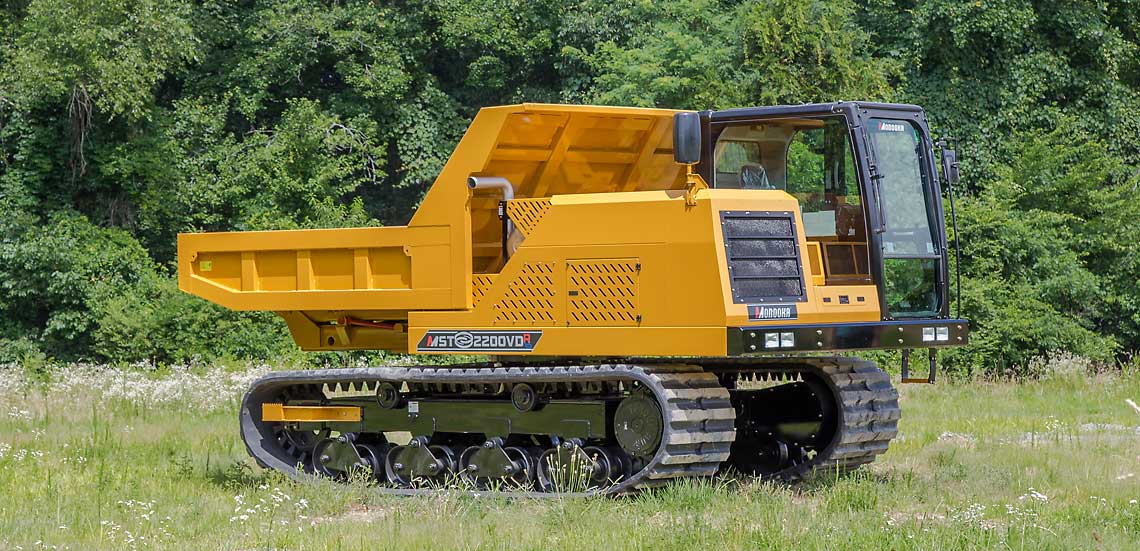

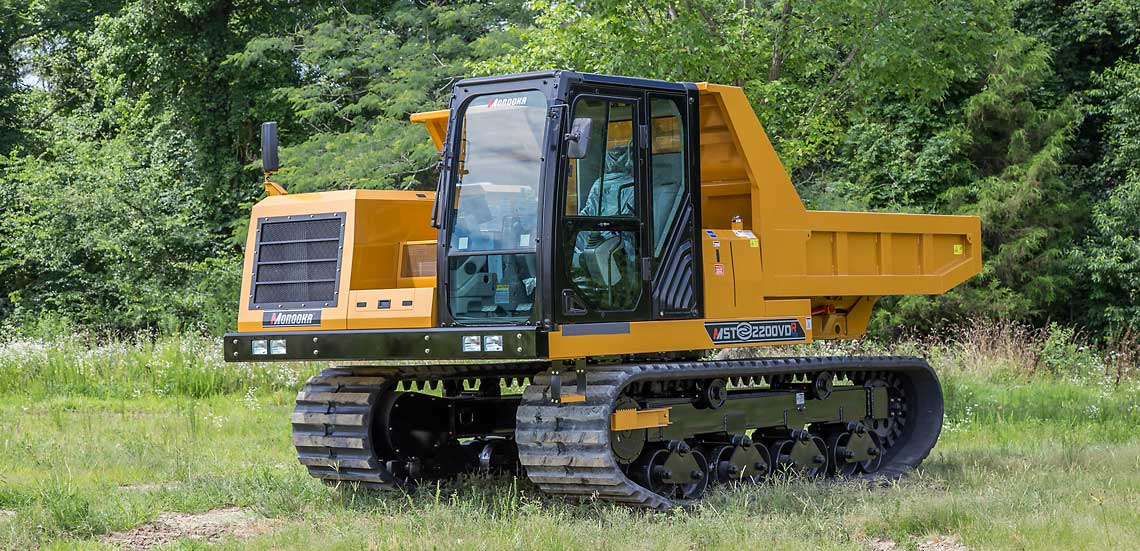

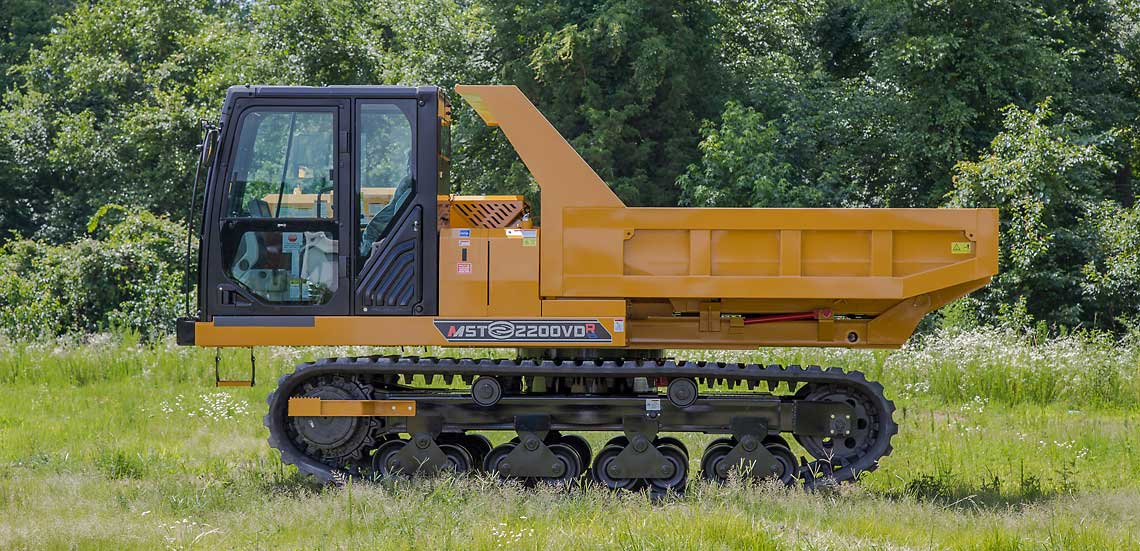

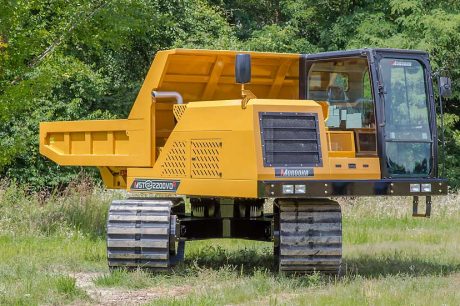

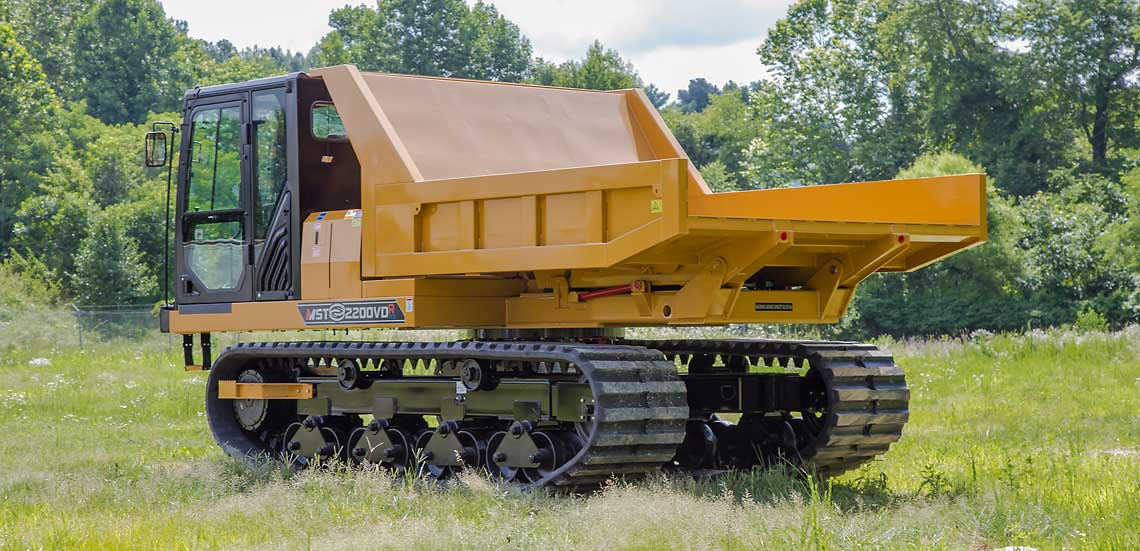

MST2200VDR

360 DEGREE UPPER STRUCTURE ROTATION, SIDE-DUMP ACCURACY

The U.S.-built Morooka MST2200VDR combines the utility of North America’s top-selling rubber track carrier model with an upper structure that rotates a full 360 degrees, allowing you to deliver your load and return without spinning the undercarriage. This feature makes possible easy-in/easy-out maneuvering in tight spaces even when carrying a maximum load of more than 12 tons. It also provides on-target side-dump accuracy, allowing your operator to deposit spoil exactly where it is needed.

The MST2200VDR features a heated and air-conditioned ROPS-certified cabin, backup camera, video information display, remote mirror, and easy-to-use joystick control.

General

Machine Weight 35,273 lbs
Track Width 33 in
Min. Ground Clearance 21 in
Lenght 19'8
Width 9'8
Height 10'6
Gauge 6'8
Length of Dump Bed 10'9
Width of Dump Bed 9'6

Hydrostatic transmission

Rubber tracks — faster than steel tracks, with lower ground pressure

Robust, powerful CAT® C7.1 250 hp T4 final engine

Easy maintenance

Industry’s best parts and service network

1 year/1,000 hour warranty

Operator-friendly and safe ROPS cabin
