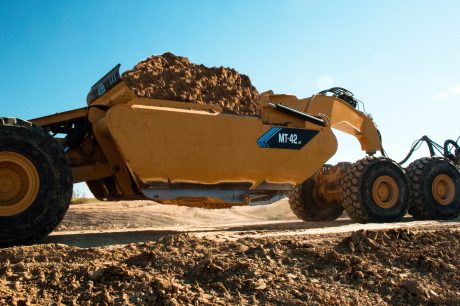

This ISO 42 yd heaped scraper includes the addition of 12-inch sideboards.

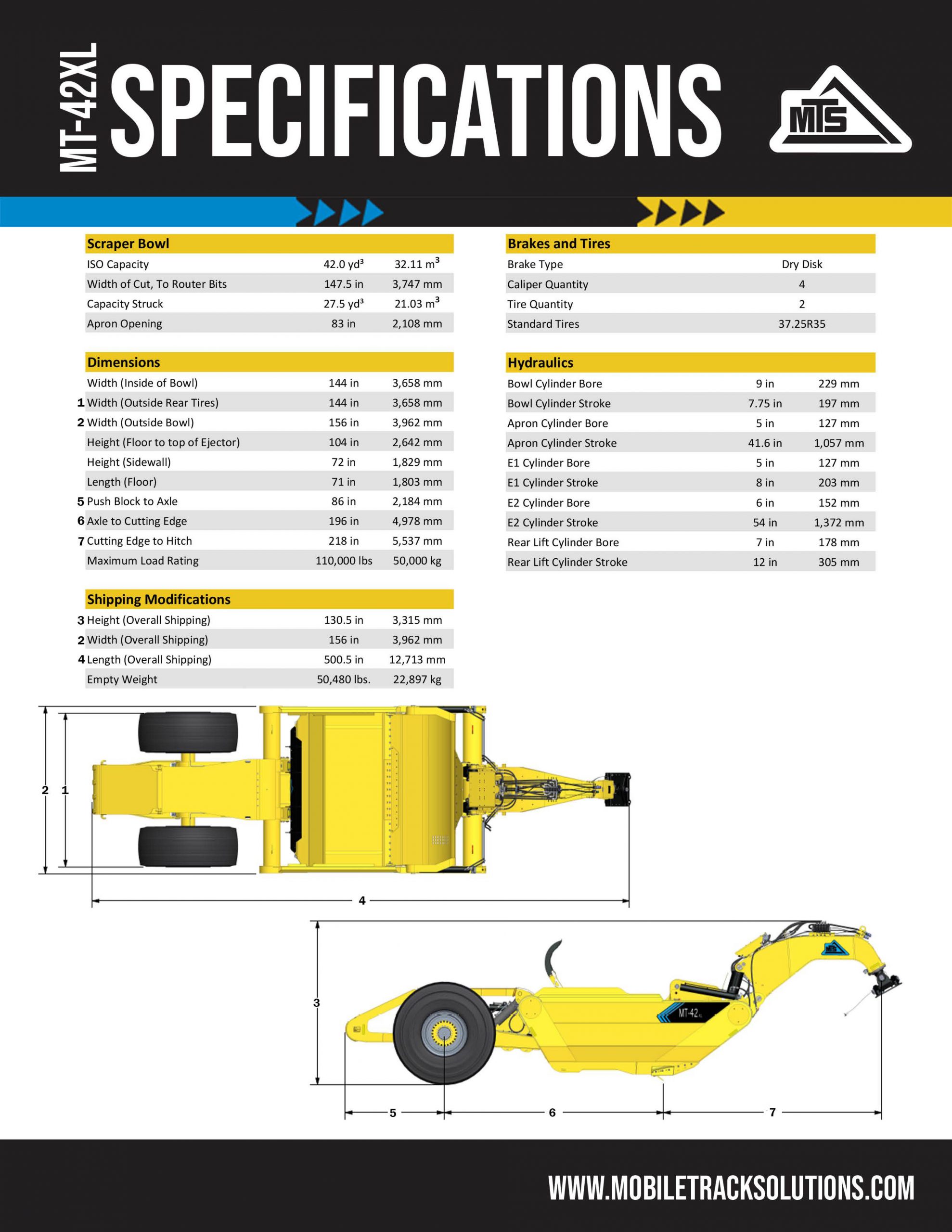

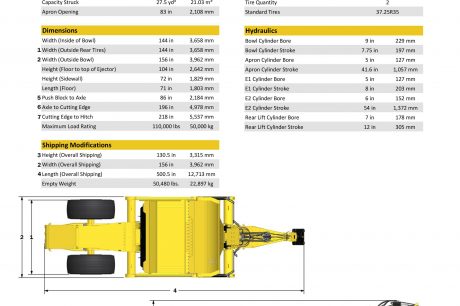

Capacity 42 yd^3
Apron Opening 83 in
Width 156 in
Height 131 in
Length 501 in
Push Block to Axle 86 in
Axle to Cutting Edge 196 in
Cutting Edge to Hitch 218 in
Maximum Load Rating 110,000 lbs
Empty Weight 50,480 lbs
  • Higher sidewalls and a narrower bowl.

  • Best used in applications where flotation is not an issue.

  • Two 37.25R35 tires provide 14% larger diameter tires for lower rolling resistance.

  • Ejector rollers conventionally mounted in the protected position on the bottom of the ejector and not on the top of scraper sidewalls where they would prevent side boarding and be subject to damage when pan is top-loaded.

  • Parallel rear frame design keeps push block at a constant height. Blade of Push Cat automatically maintains contact with the scraper.

  • Two stage ejection system maximizes force during the first 75% of ejection and faster speed during the final 25% to “throw” the material out, eliminating carry back.
