MT-42LGP

This ISO 42 yd heaped scraper is designed as a construction pan and not just a scaled-up version of an agriculture scraper. It is the perfect match for the 745C tow chassis and can easily be fitted to older 740B models in the field.

Photos

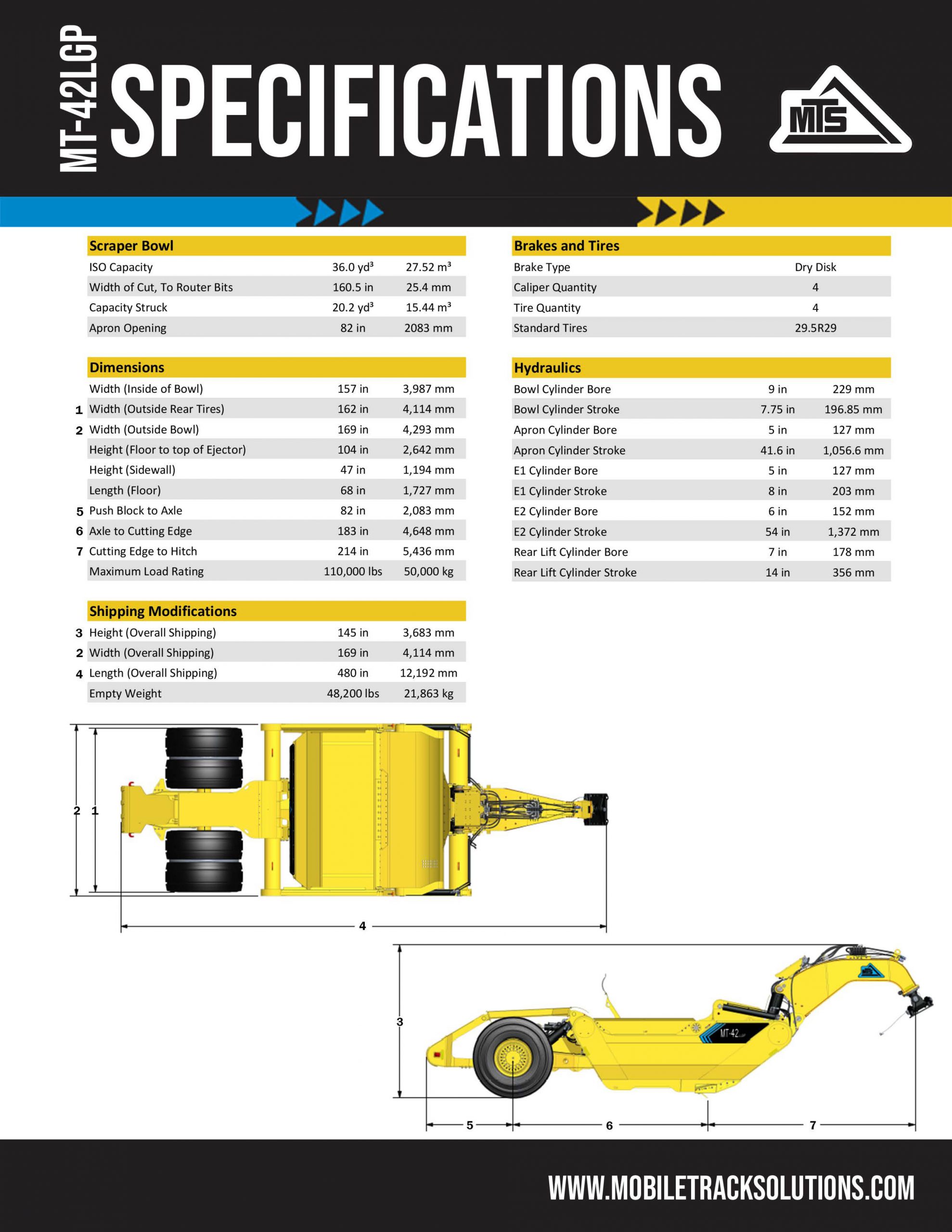

Specifications

General

Capacity	36 yd^3
Apron Opening	82 in
Width	169 in
Height	145 in
Length	480 in
Push Block to Axle	82 in
Axle to Cutting Edge	183 in
Cutting Edge to Hitch	214 in
Maximum Load Rating	110,000 lbs
Empty Weight	48,200 lbs

Designed to be a low ground pressure scraper.
Lower sidewall allows challenging soils to be loaded easily.
Four 29.5R29 tires provide excellent flotation.
Positioning of scraper axle transfers more weight to tow vehicle resulting in more equal weight distribution among the four axles. When fully loaded the front axle is still the heaviest meaning anywhere an empty 745C truck can travel a loaded MT-42LGP can travel.
Two stage ejection system maximizes force during the first 75% of ejection and faster speed during the final 25% to “throw” the material out, eliminating carry back.
