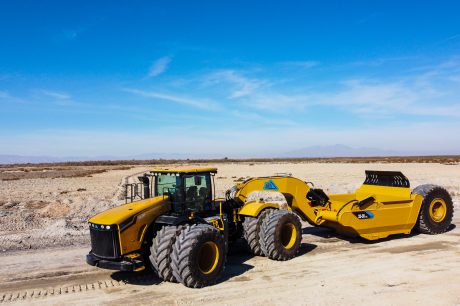

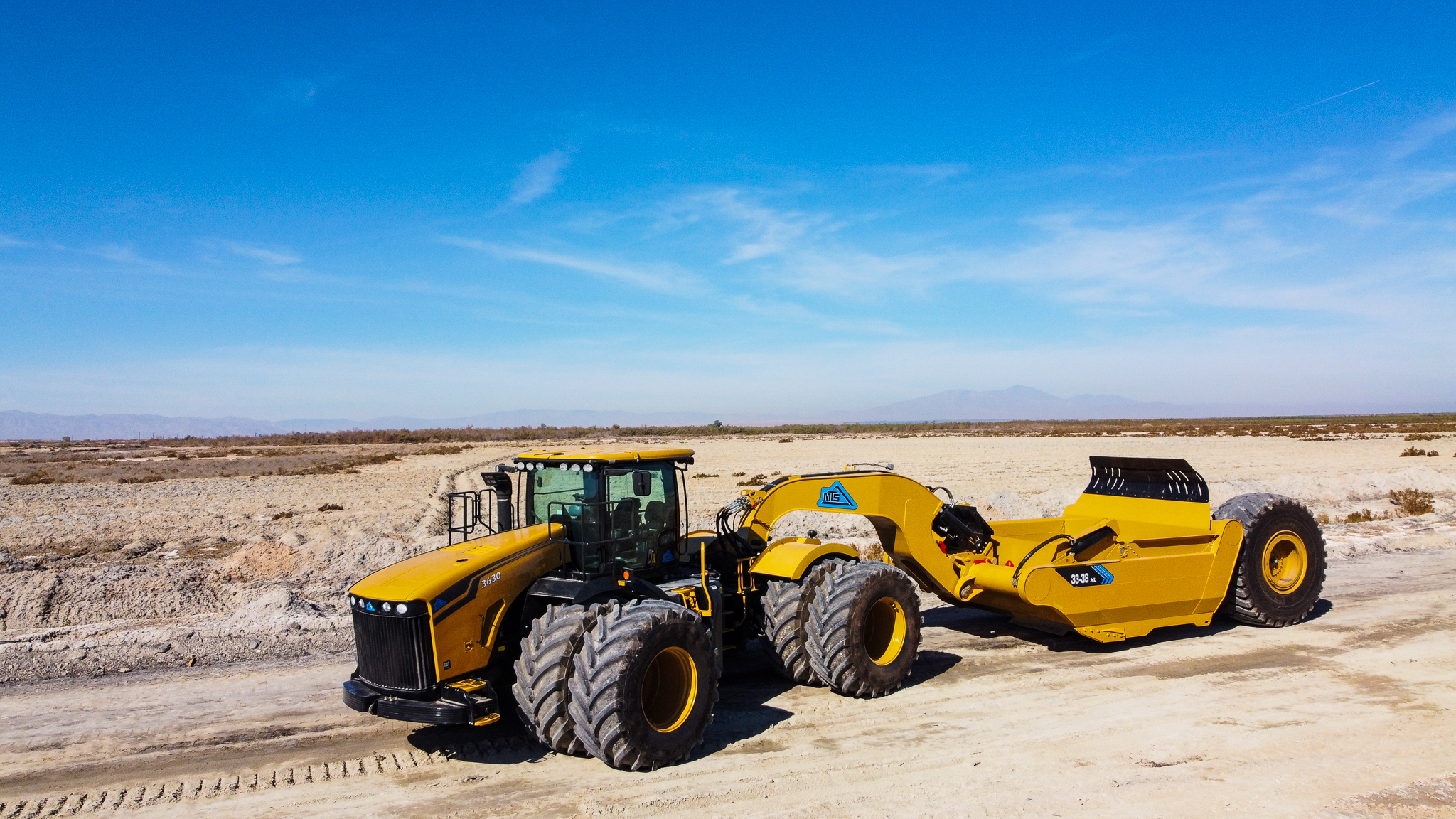

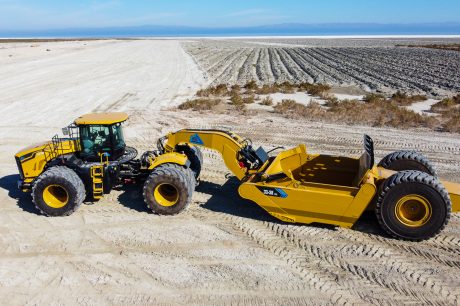

3630W Switchback

Another INDUSTRY FIRST from Mobile Track Solutions with a 630HP tractor capable of towing straight tongue and gooseneck scrapers!  We’ve taken all the systems we’ve been refining on the 3630 and carried them over to this new SWITCHBACK platform.  Equipped with the CAT C18 Engine and CAT TA22H Transmission this unit takes CONSTRUCTION GRADE to a new level!

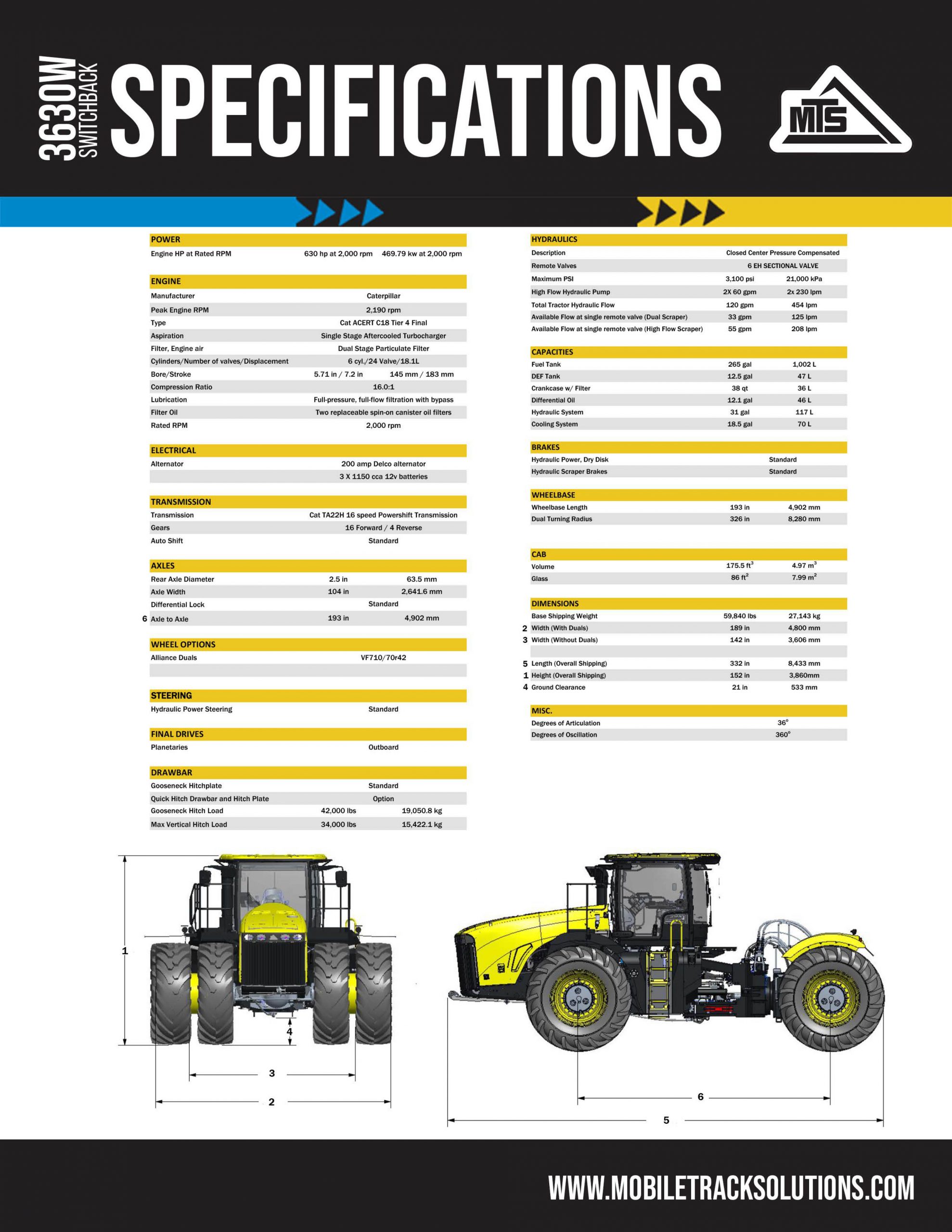

General

Engine HP at Rated RPM 630 hp at 2,000 rpm
Engine Manufacturer Caterpillar
Engine Type Cat ACERT C18 Tier 4 Final
Transmission Cat TA22H 16 Speed Powershift
Gooseneck Hitchplate Standard
Gooseneck Hitch Load 42,000 lbs
Max Vertical Hitch Load 34,000 lbs
Height 152 in
Width (With Duals) 189 in
Width (Without Duals) 142 in
Ground Clearance 21 in
Length 332 in
Weight 59,840 lbs
Degrees of Articulation 36
Degrees of Oscillation 360
