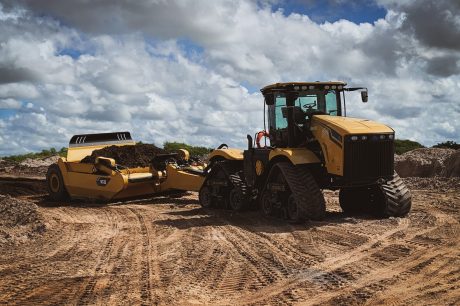

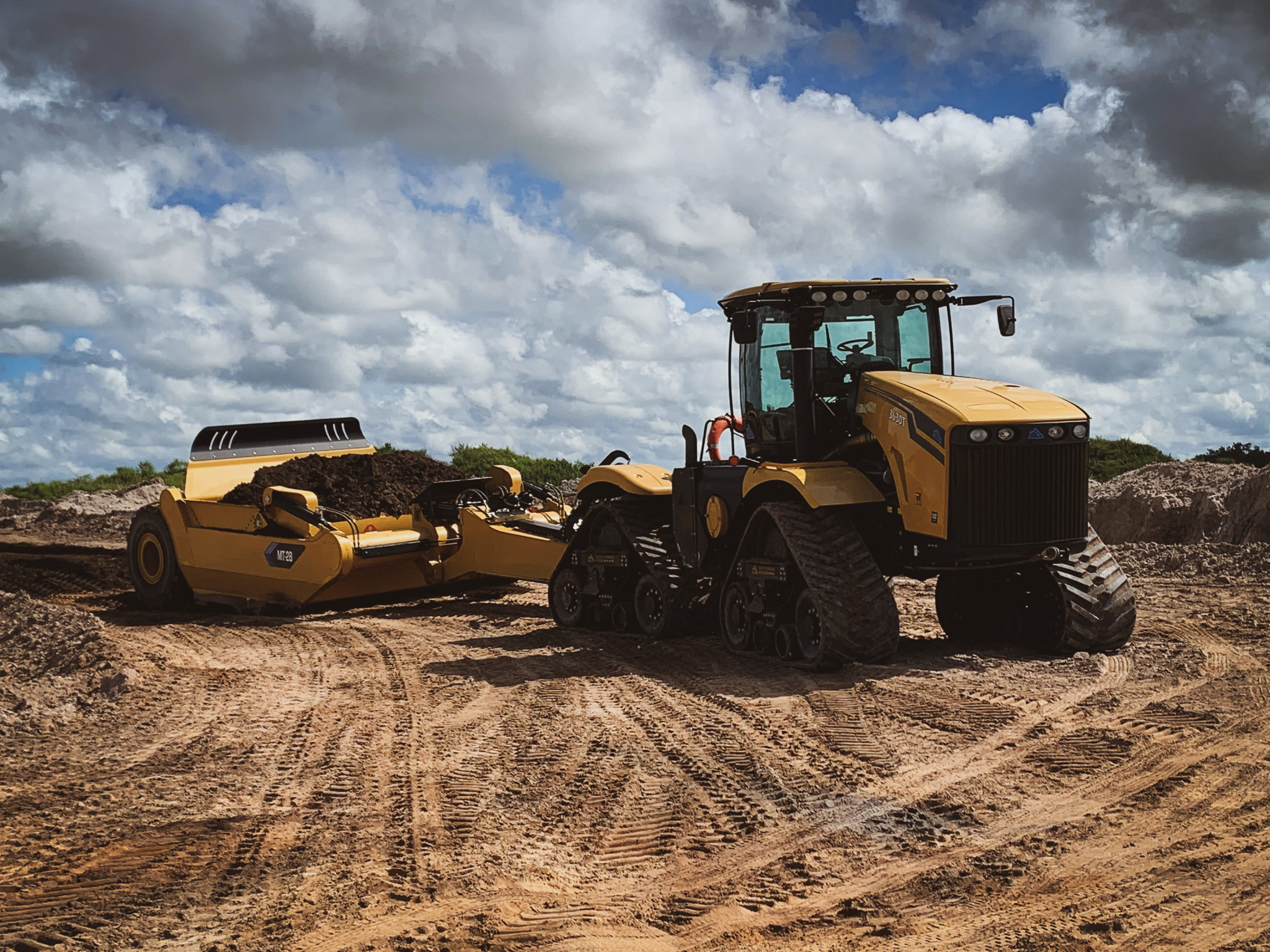

3630T

This construction-grade tractor far exceeds the production, reliability, and durability of leading agriculture tractors found on construction sites.  Equipped with CAT C18 engine and CAT TA22H transmission, the 630hp exceeds that of Ag tractor manufacturers who try to modify their field tractors for pulling pans in construction.

• Print
• Email

•   Photos

•
•
•
•
•

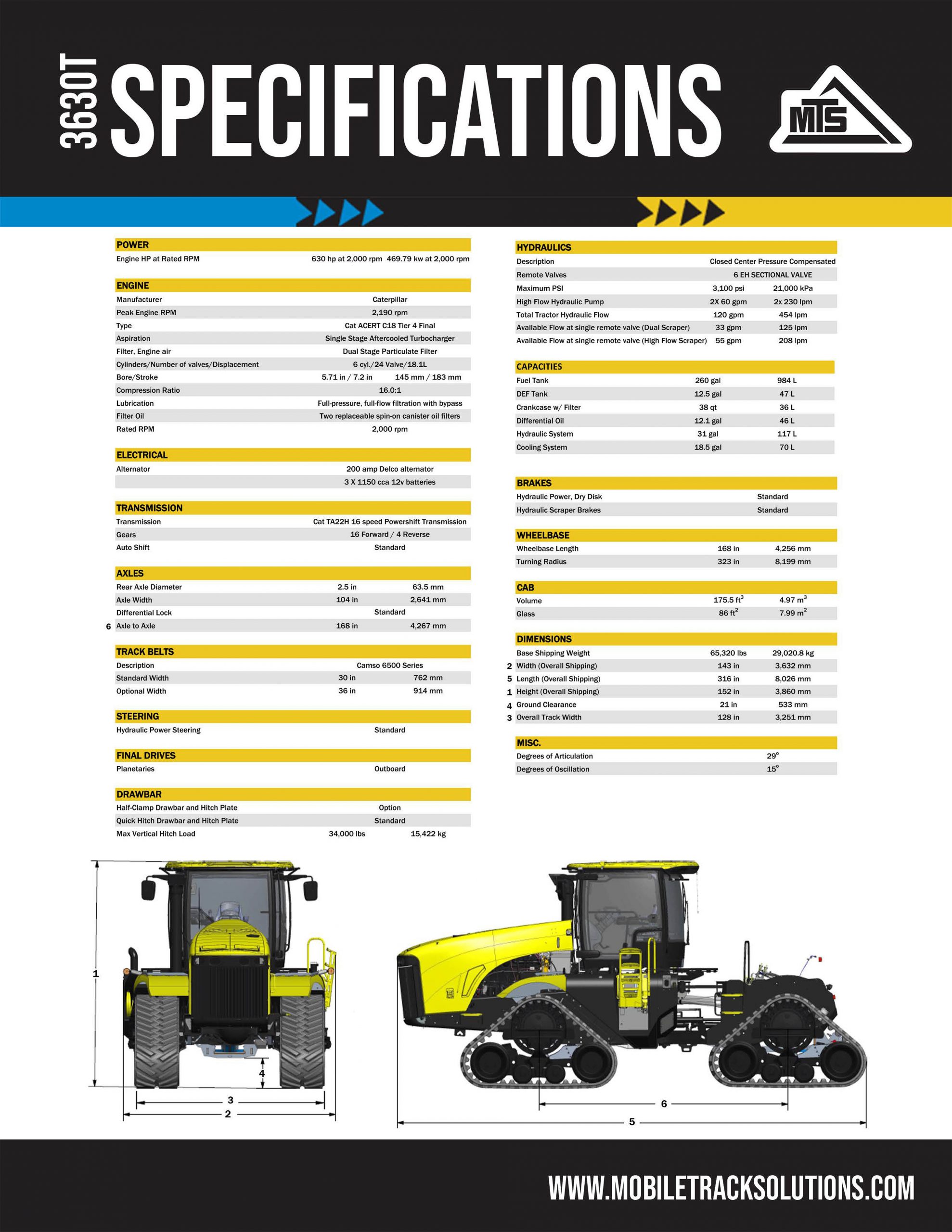

• Specifications

General

Engine HP at Rated RPM	630 hp at 2,000 rpm
Engine Manufacturer	Caterpillar
Engine Type	Cat ACERT C18 Tier 4 Final
Transmission	Cat TA22H 16 Speed Powershift
Track Belts	Camso 6500 Series
Track Belt Width	30 in
Max Vertical Hitch Load	34,000 lbs
Height	152 in
Width	143 in
Overall Track Width	128 in
Ground Clearance	21 in
Weight	65,320 lbs
Length	316 in
Degrees of Articluation	29
Degrees of Oscillation	15

This unit meets Tier IV requirements.

Articulated steering eliminates the side slope and turning problems (and forces) experienced by tractors with single, long rubber belts.

Large cab, unique positioning of exhaust and Tier IV package provide unparalleled visibility for the operator.

Heavy duty rear axle designed to accept an industry leading 34,000 lbs of vertical hitch load.

Four lower undercarriage rollers straddle the centerline of the final drive case and provide “walking beam” suspension.

Built as a true CONSTRUCTION GRADE machine the 3630T features:

ROPS certified to construction standards and not Ag standards

Decelerator pedal common on almost all construction vehicles.

Cold weather starting package

Heavy duty VEP Stucchi hydraulic couplers

Construction grade wiring harness
