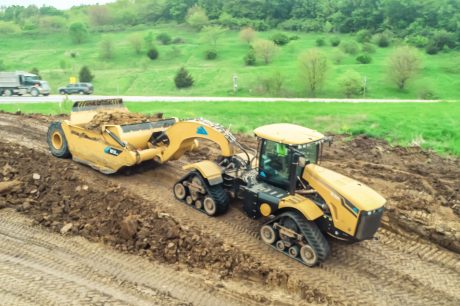

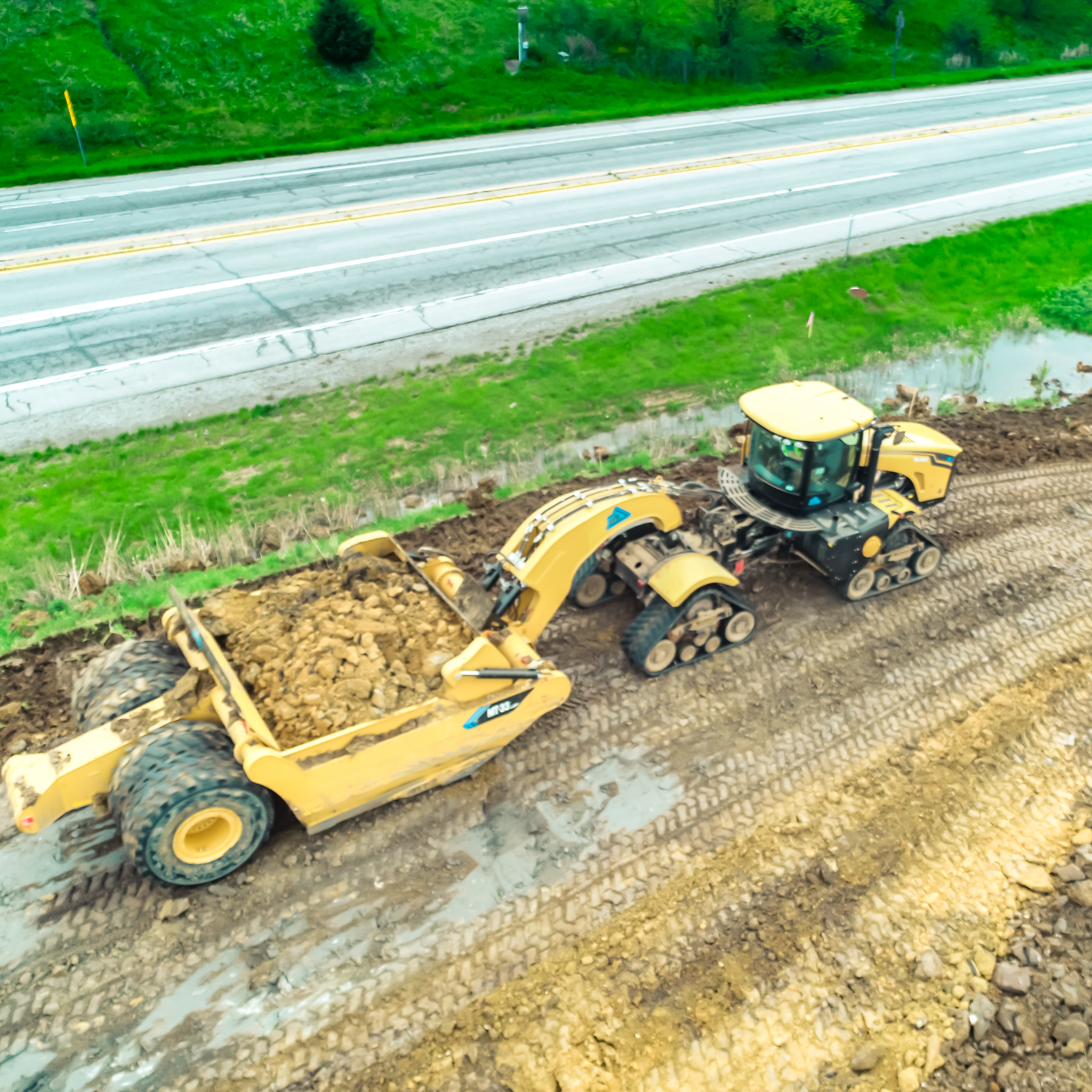

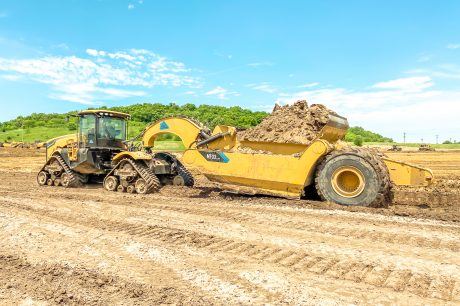

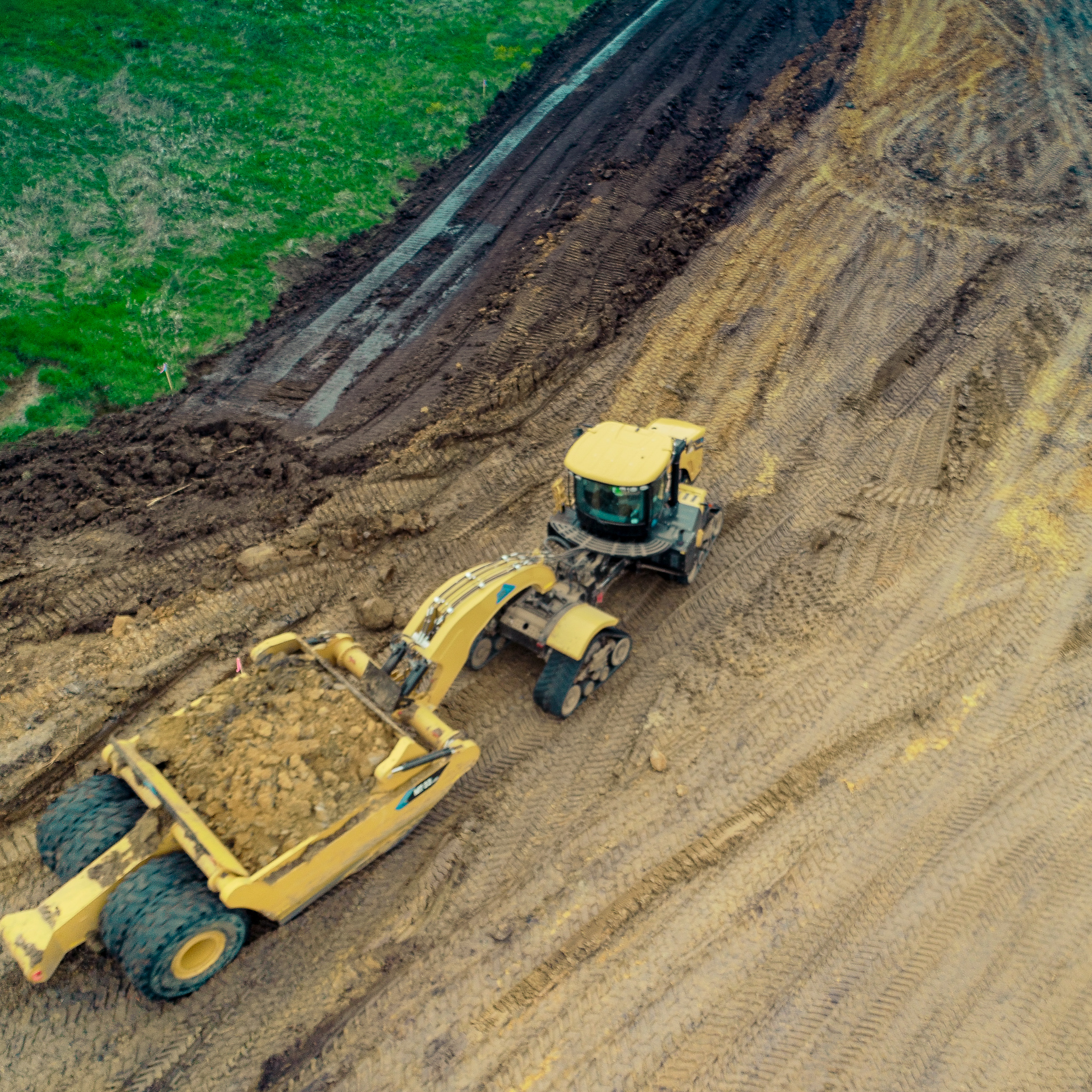

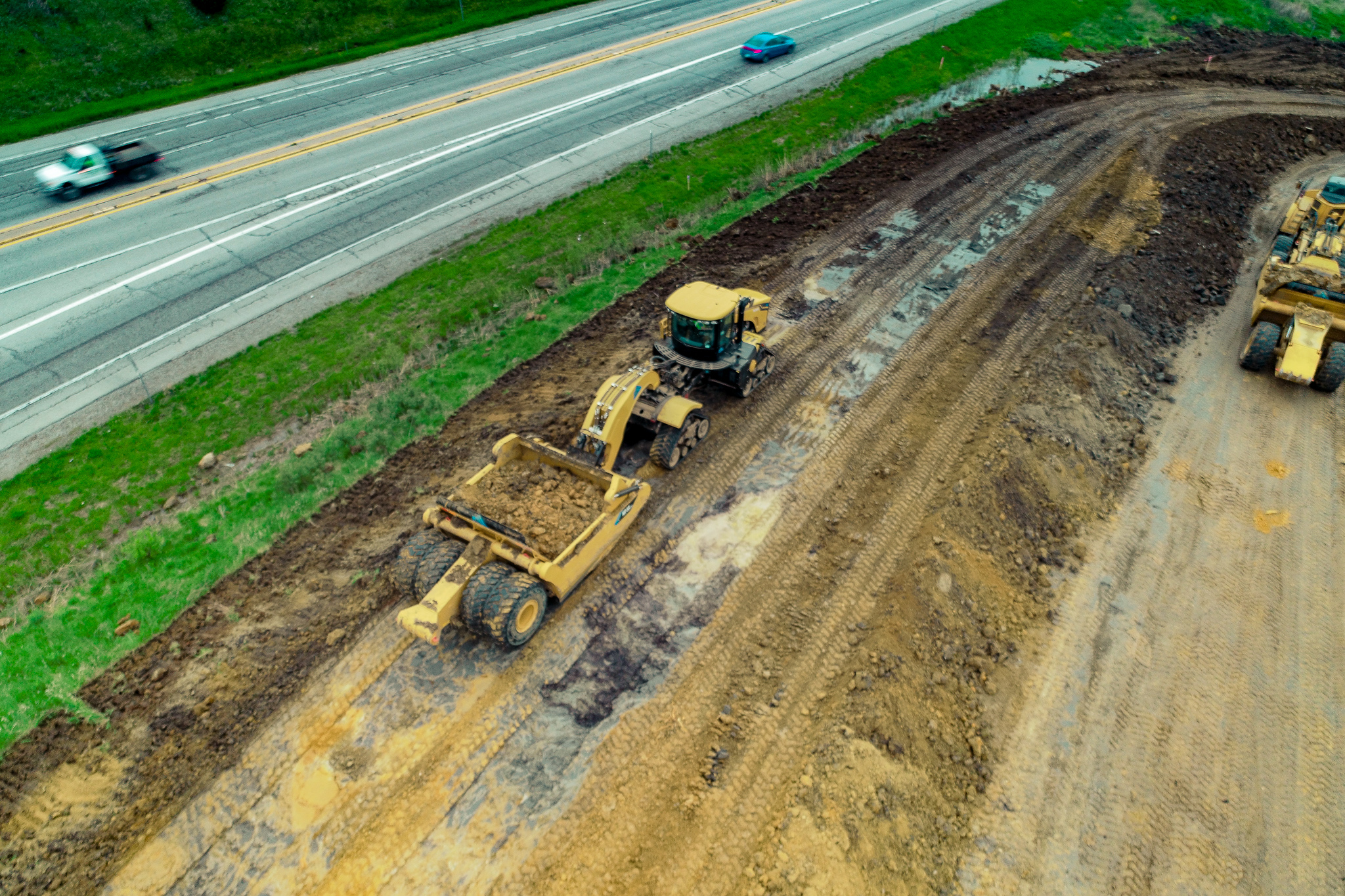

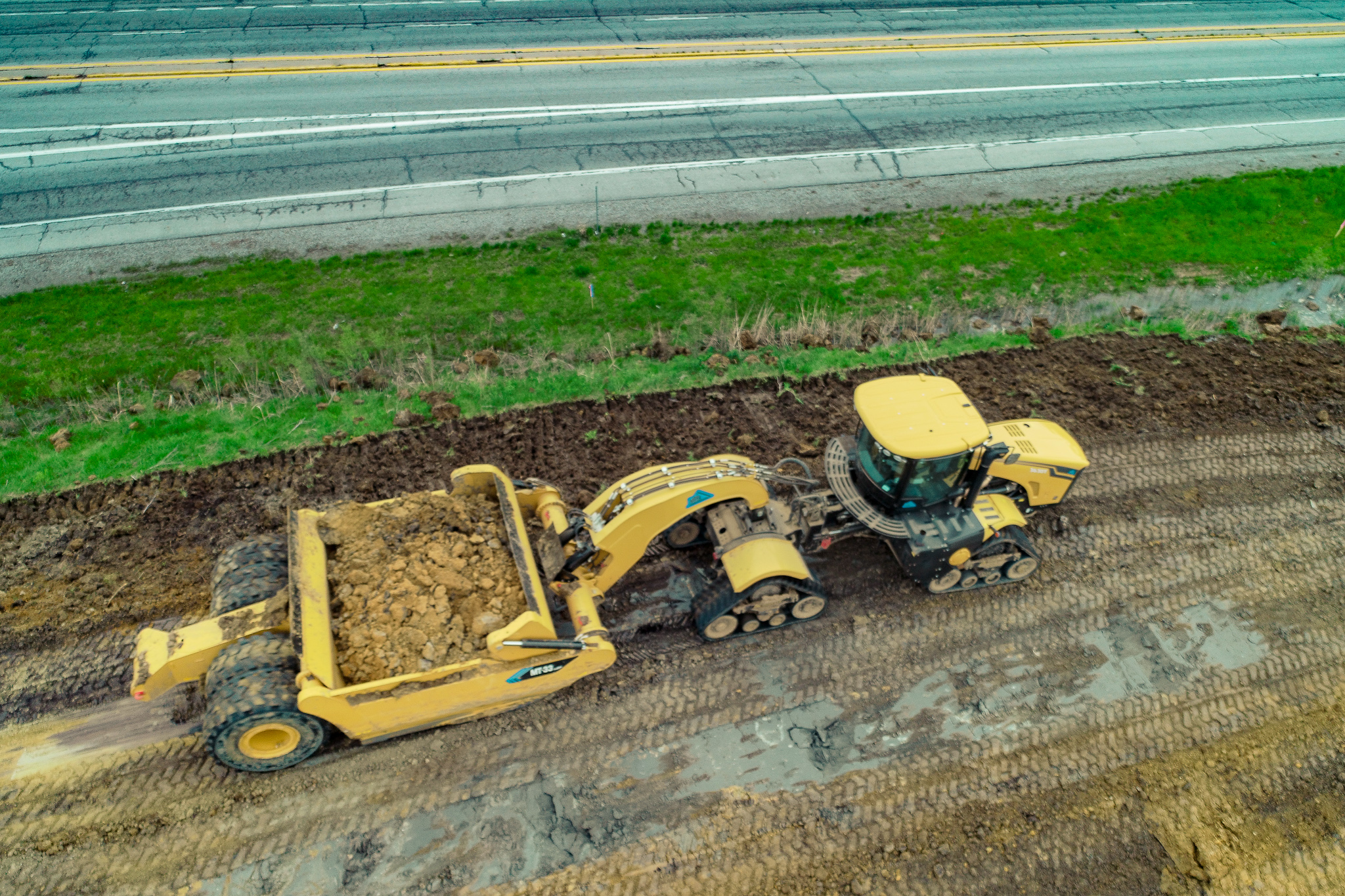

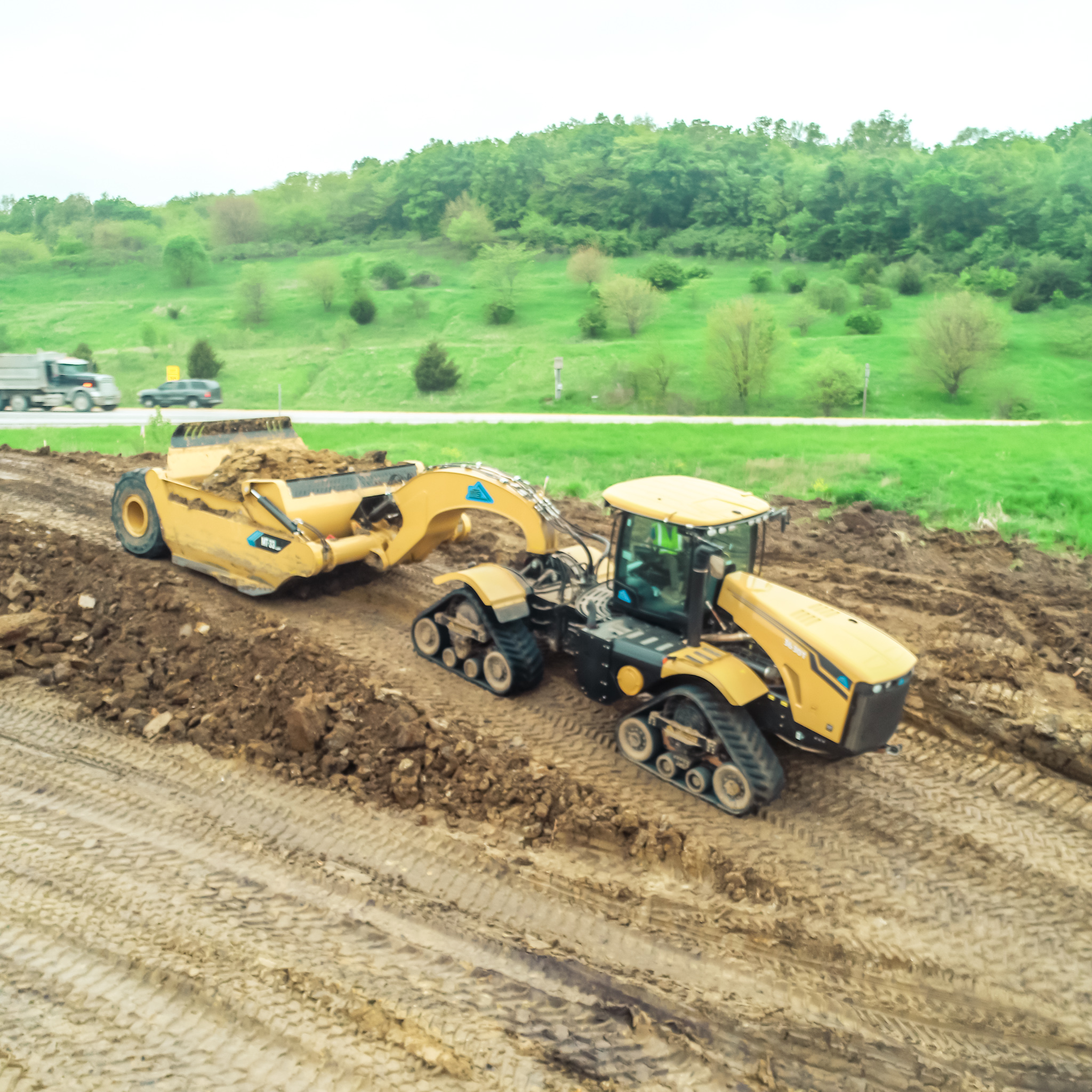

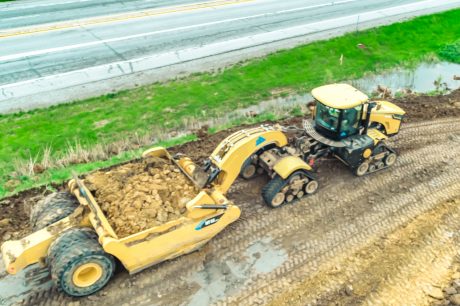

3630T Switchback

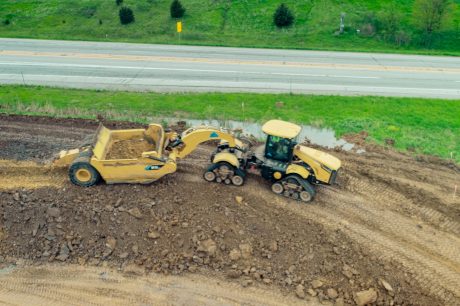

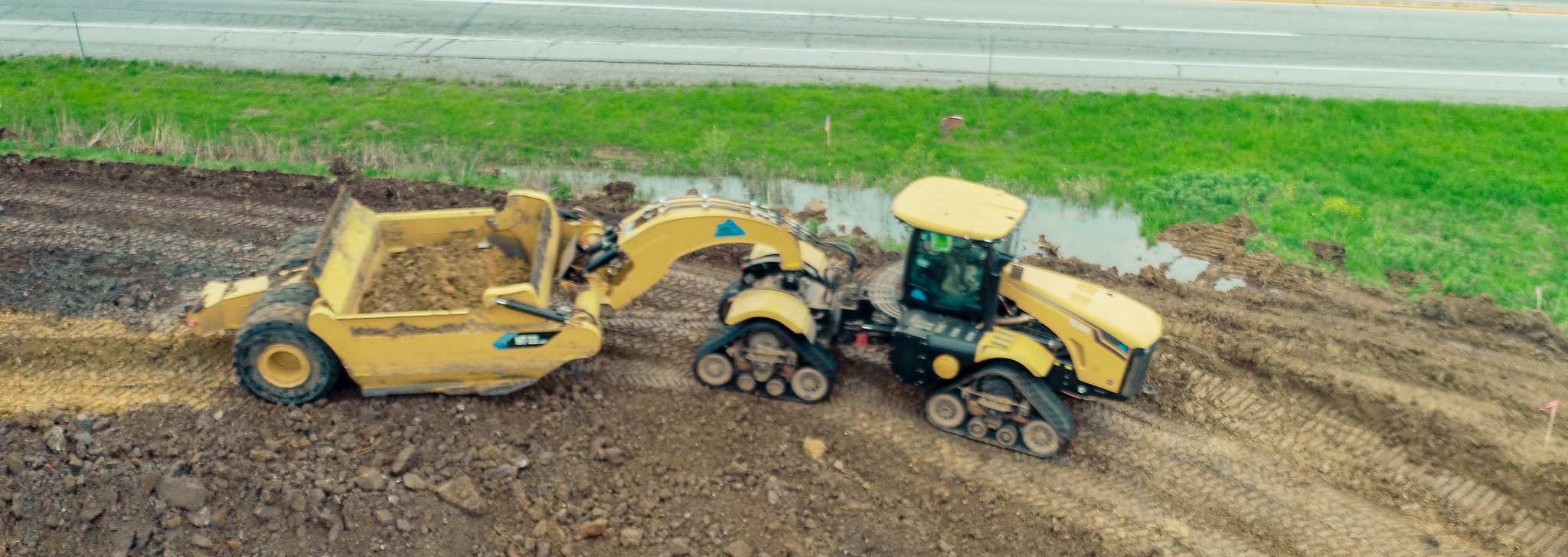

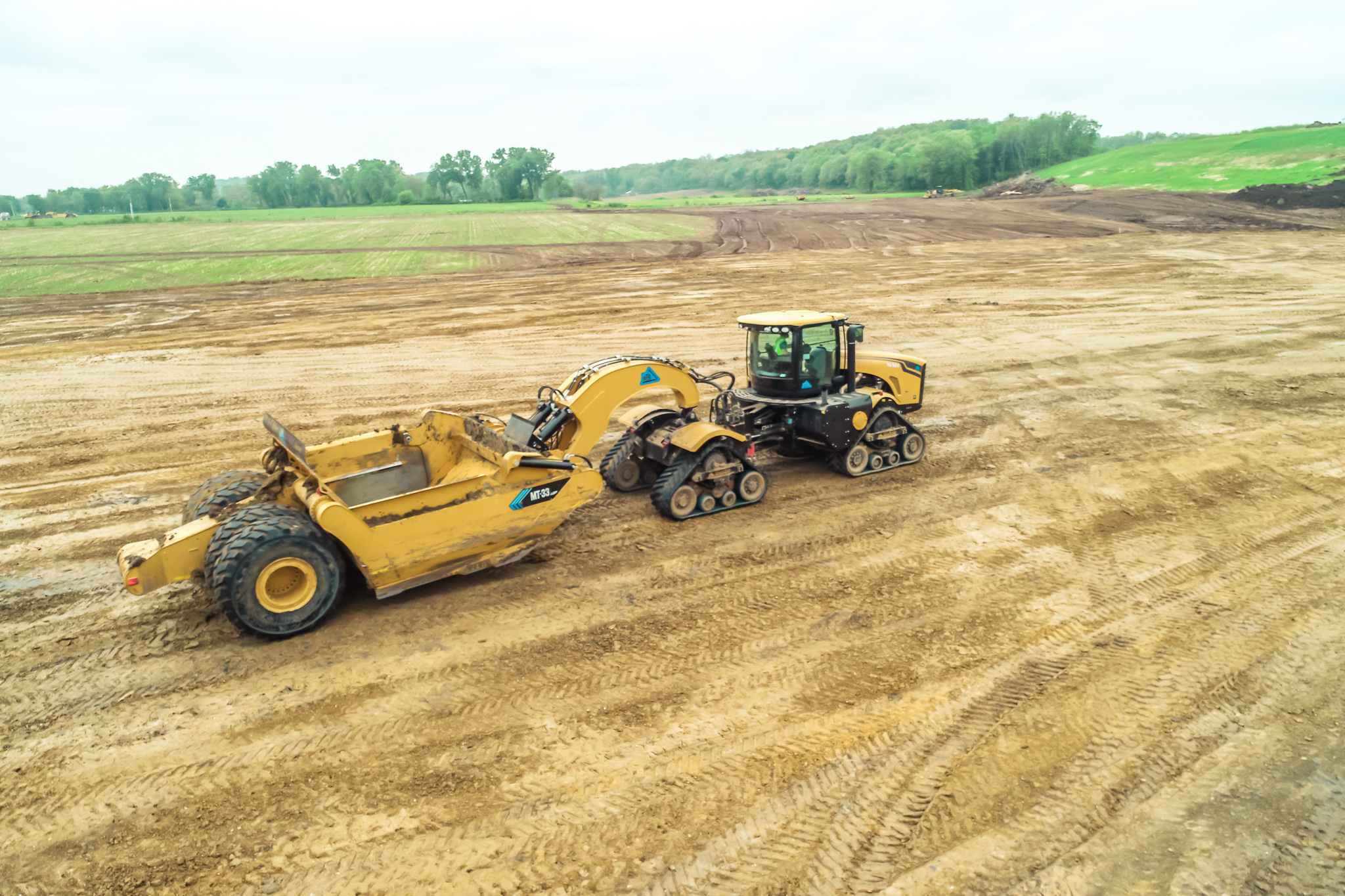

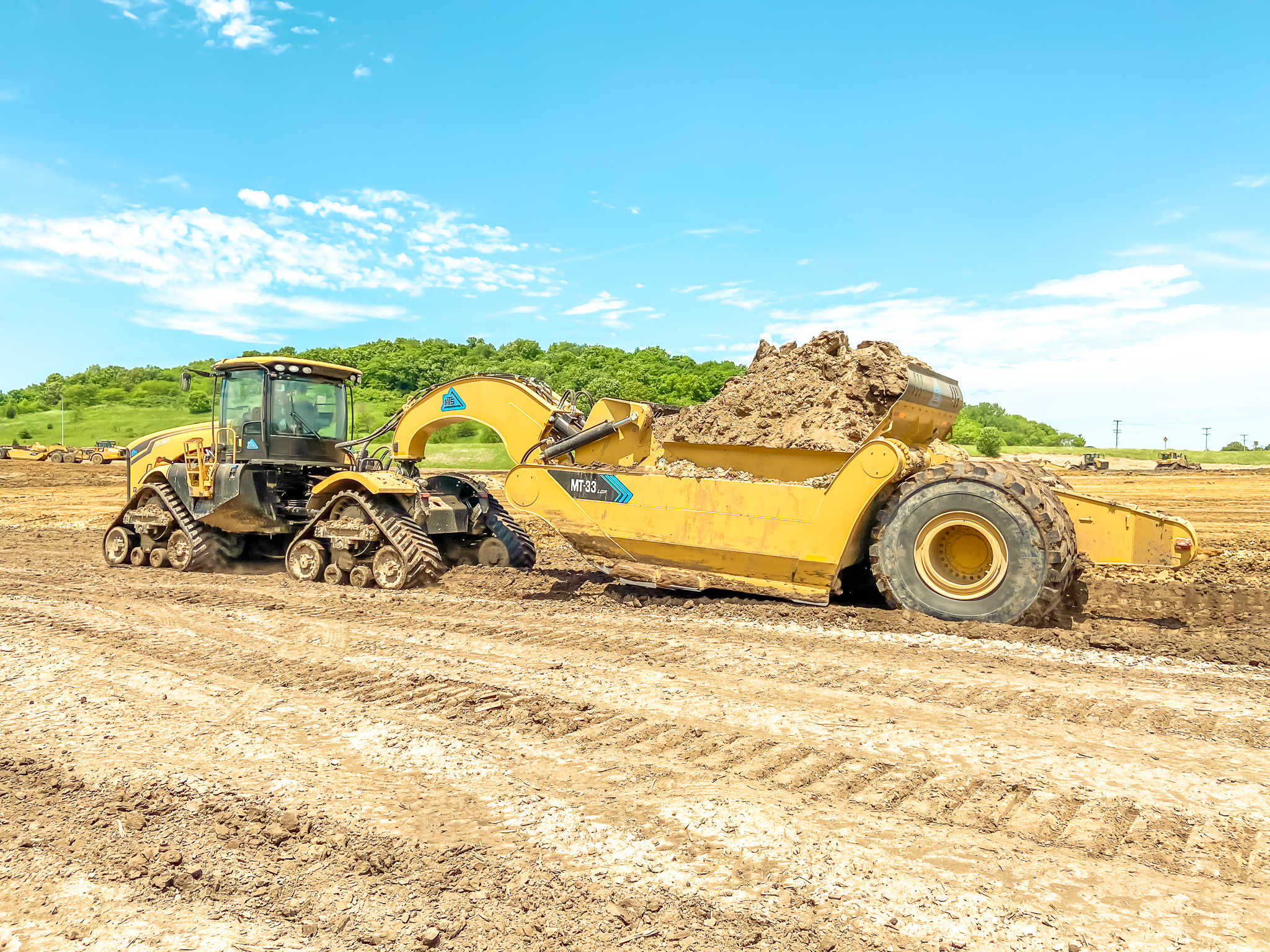

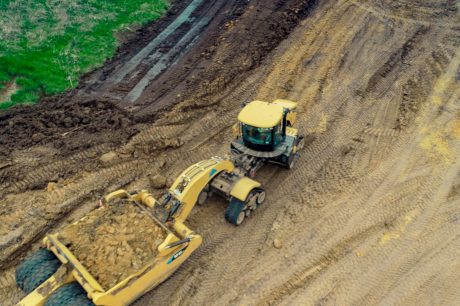

Another INDUSTRY FIRST from Mobile Track Solutions with a 630HP tractor capable of towing straight tongue and gooseneck scrapers!  We’ve taken all the systems we’ve been refining on the 3630T and carried them over to this new SWITCHBACK platform.  Equipped with the CAT C18 Engine and CAT TA22H Transmission this unit takes CONSTRUCTION GRADE to a new level!

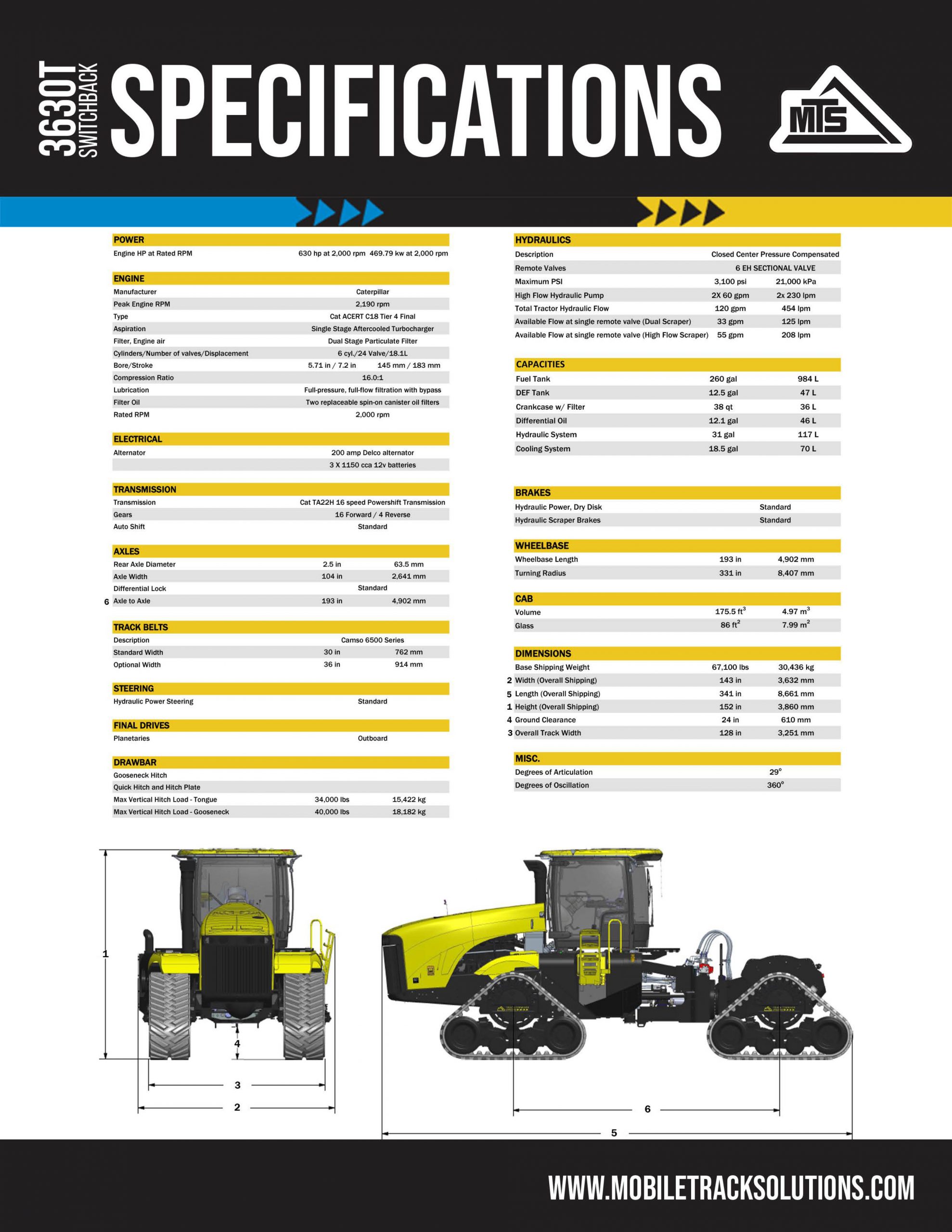

General

Engine HP at RPM 630 hp at 2,000 rpm
Engine Manufacturer Caterpillar
Engine Type Cat ACERT C18 Tier 4 Final
Transmission Cat TA22H 16 Speed Powershift
Track Belt Type Camso 6500 Series
Track Belt Width 30 in
Max Vertical Hitch Load - Tongue 34,000 lbs
Max Vertical Hitch Load - Gooseneck 40,000 lbs
Height 152 in
Width 143 in
Overall Track Width 128 in
Ground Clearance 24 in
Length 341 in
Weight 67,100 lbs
Degrees of Articulation 29
Degrees of Oscillation 360
