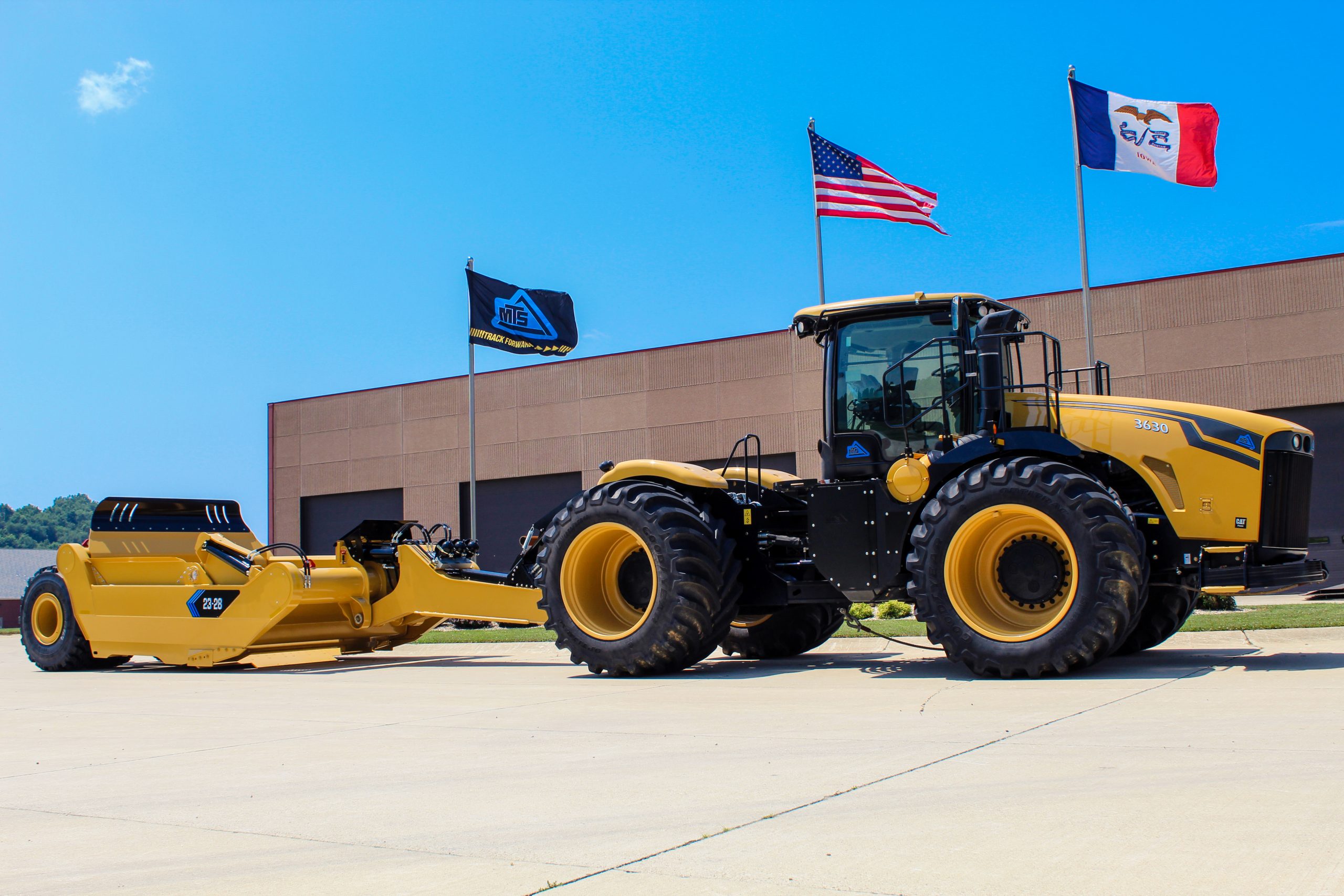

This rubber-tired brother of the tracked 3630T is built as a true CONSTRUCTION GRADE tractor and far exceeds the production, reliability, and durability of leading agriculture tractors found on construction sites.

Equipped with CAT C18 engine and CAT TA22H transmission, the 630hp exceeds that of Ag tractor manufacturers who try to modify their field tractors for pulling pans in construction.

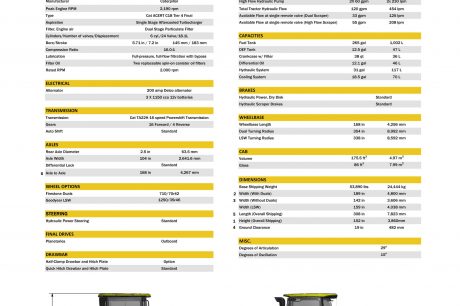

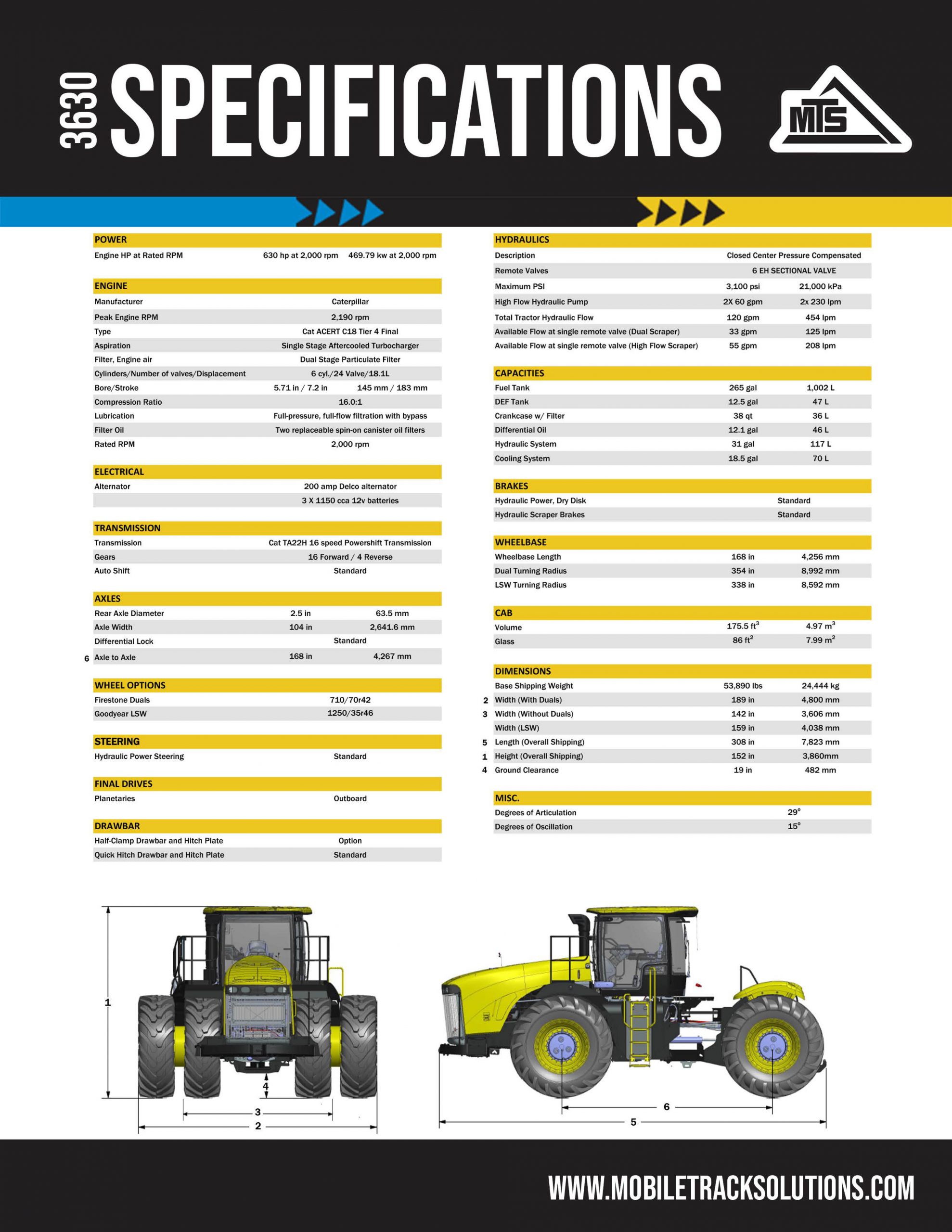

Engine HP at Rated RPM 630 hp at 2,000 rpm
Engine Manufactor Caterpillar
Engine Type Cat ACERT C18 Tier 4 Final
Transmission Cat TA22H 16 Speed Powershift
Quick Hitch Drawbar and Hitch Plate Standard
Height 152 in
Width (With Duals) 189 in
Width (Without Duals) 142 in
Ground Clearance 19 in
Length 308 in
Weight 53,890 lbs
Degrees of Articulations 29
Degrees of Oscillation 15
