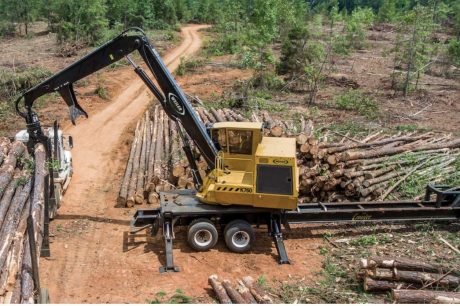

K760

Weiler knuckleboom loaders set the industry standard with superior hydraulic performance, heavy-duty structures and fuel-efficient engines.  These loaders prove their durability and reliability day in and day out in the toughest logging applications.  Best in class ground level access to filters provides convenience and safety while performing routine service.  A fully integrated delimber and trailer package from the factory is an industry exclusive providing total machine support.

General

Engine Model Cat C4.4 Tier 4 Final
Weight 36,500 lb
Maximum Reach 32'
Gross Power 173 hp
Engine Speed 1800 rpm
Fuel Capacity 100 gal
DEF Capacity 5 gal
Swing Torque 73,800 lbf-ft
Swing Speed 9.5 rpm
Transport Width 8'6
Transport Height 13'3
Transport Length 52'1
