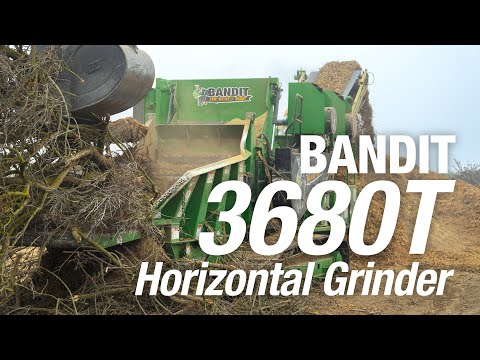

3680XP – TRACK

The Beast® Model 3680XP track is a high production grinder and is one of the more popular grinders available. The 3680XP is equipped with a 42” diameter by 63” wide cuttermill and a 35″ high x 60″ wide mill opening.

Choose from a Caterpillar C27, 875 or 1,050 horsepower engine. The 3680XP track comes standard with a Caterpillar 325EL steel track undercarriage and all track and grinding functions are controlled with a wireless radio remote control with tether back-up.

A 14′ 9″ long x 60″ infeed with double slat design track style infeed conveyor provides ample room for feeding a wide variety of material. A 30″ diameter feed wheel further assists with pulling material into the mill. Proportional feed is also standard with 6-speed adjustments allow for maximum productivity and fuel efficiency. All grinding functions are controlled with a wireless radio remote control with tether back-up.

A wide variety of tooth and screen options are available to adequately process and size material. A single screen and gate can easily be changed from the side of the grinding chamber while utilizing the standard screen changing arm.
