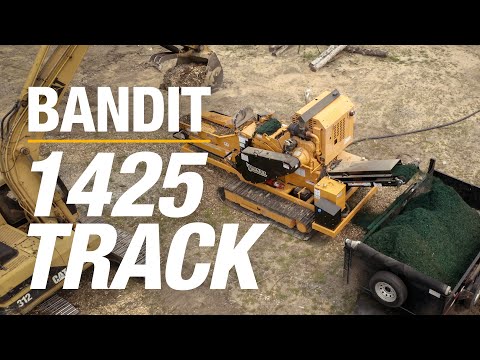

1425 – TRACK

Due to the popularity of the tow-behind model, a track version of the 1425 was developed. The track undercarriage increases versatility, allowing it to easily be maneuvered and positioned. All track and grinding functions are controlled by a wireless radio remote control. A Caterpillar 308 steel track undercarriage offers a stable grinding platform for a variety of terrain.

The 1425 track is rated as a 14″ capacity machine and features a 20″ high x 25″ wide mill opening. A Caterpillar 174 horsepower Tier 4 engine provides added torque and power compared to the 1425 towable.

The infeed is 24” wide x 7’ long and is configured with a rubber or steel conveyor. The 1425 has Bandit’s cuttermill that is 36” diameter and equipped with 14 teeth. A stationary discharge system with a stacking height of 7′ is standard and a magnetic head pulley is available to separate nails for those grinding pallets.

Specifications

Opening 25 in x 20 in
Width 101.25 in
Height 115 in
Length 297 in
Fuel Tank 40 gl
Hydraulic Tank 40 gl
Power 174 hp

Benefits and Features

Caterpillar 174 horsepower - Tier 4 Final Engine
Caterpillar 308 Steel track undercarriage
36" diameter x 25" wide cuttermill with 14 teeth
7' long x 24" wide infeed conveyor (steel or rubber)
18" wide stationary discharge (7' approximate stacking height)
Feed Rate: 40 ft/min
