XQ570 Tier 4 Final – 455 ekW (568 kVA)

XQ570 Rental Power Genserator Set.

Generator Set

Rating Prime 455 ekW (568 kVA)
Frequency 60 Hz
Voltage 120 - 600V
Rating Standby 500 ekW (625 kVA)

Engine

Engine Cat C18
Fuel Diesel

Dimensions

Height - Without Trailer 102in
Length - Without Trailer 240in
Width - Without Trailer 96in
Weight with Lube Oil and Coolant, Without Trailer 24125lb

Fuel Consumption

100% Load 60Hz 33.2gal/hr
75% Load 60Hz 26.2gal/hr
50% Load 60Hz 19gal/hr
100% Load 60Hz 35.9gal/hr
75% Load 60Hz 28.3gal/hr
50% Load 60Hz 20.5gal/hr

Noise rating (with enclosure)

Sound Power @ 7 meters (23 feet) @ All Ratings 74 dB(A)

Standard Equipment

  • Cat C18 Diesel Engine
    • Heavy-duty.
      Turbocharged.
      After treatment
  • Generator
    • LC6134G Frame
  • Control Panel
    • Digital EMCP4.4 set mounted controller
  • Cat Connect Remote Monitoring
    • Provides package monitoring and management
  • Cooling System
    • Package mounted radiator with vertical air discharge.
      Filled from factory
  • Charging / Starting System
    • 12V heavy duty starting motor and charging alternator c/w battery isolator
  • Fuel System
    • 24 hour dual wall fuel tank with 3 way directional valve for external supply
  • Air Filter
    • Cyclonic/paper with dust cup and service indicator

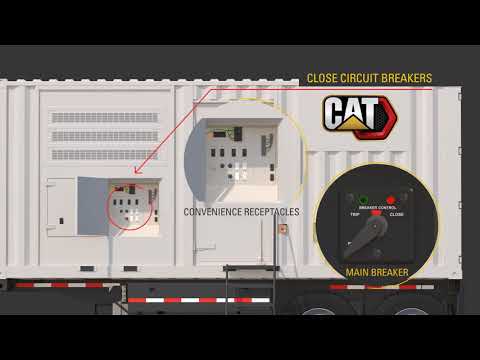

  • Distribution
    • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
  • Structure
    • Heavy Duty steel base frame with integral fuel tank.
      Lifting frame and 4 point lift.
      base frame is wider than enclosure to protect generator set during transportation
  • Enclosure
    • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
  • Exhaust
    • Integrated spark arresting silencer
  • Lube Oil
    • On engine primary and secondary oil filters. Filled from factory
  • General
    • Factory tested and inspected

Optional Equipment
