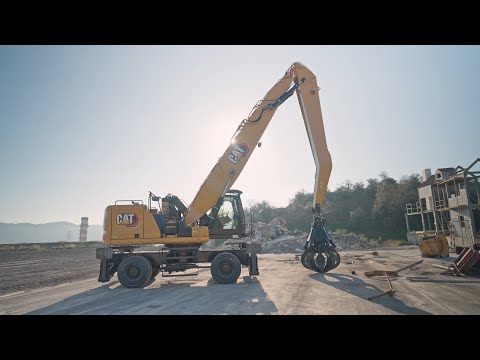

MH3032 Wheel Material Handler

Latest Features

• At the touch of fingertips and navigating user-friendly icons, the latest operator oriented User Interface (UI) maximizes uptime and gets crews to work without delay. From re-ordering work tool lists to creating new work tool combinations as needed, operators can quickly set up machines and easily access information.
• The interface allows operators to maintain accuracy and makes the most of every second of their shift. Adding the ability to input couplers and attachments into the system makes setting up work tool combinations highly efficient by significantly reducing calibration time. It also eliminates the need to measure up again when changing Cat^® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.
• Cat Payload provides operators with on-the-go weighing to help them hit load targets and avoid overloading, underloading, or misloading materials. Combine Payload with VisionLink^TM** to analyze jobsites and individual assets for remote management of production targets and key metrics.
• Swing Assist automatically stops machine swing at operator-defined preset points. Simply swing to the desired stopping point and activate using the machine monitor or a preset joystick button. As you get closer, the machine will automatically decelerate and not allow swing past the set point. Swing Assist helps you hit more repetitive swing targets to help reduce fuel use and improve cycle times.

High Performance

• The C7.1 engine can run on biodiesel up to B20 and meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 and Korea Tier 4 Final emission standards with an aftertreatment system that requires no maintenance or downtime.
• Match the machine to the job with three power modes - Power, Smart, and Eco. Smart mode automatically matches engine and hydraulic power to working conditions, helping provide maximum power when needed and reducing power when it isn't to save fuel.
• The advanced electro-hydraulic system helps provide the optimum balance of power and efficiency while giving you the control you need.
• Available SmartBoom™ lets the boom freely travel up and down without using any pump flow so operators can focus on stick and bucket work.
• Valve priority helps put hydraulic pressure and flow where you need it.
• Program and store your preferred power mode and joystick settings using your Operator ID. The machine will automatically remember your selections.

Integrated Cat® Technologies

• Cat Payload helps you achieve precise load targets to improve your operating efficiency. Pick up a load of material – with a grapple or clamshell attachment – and get a real-time weight estimate without swinging.
• VisionLink^TM provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer. *Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
• Swing Assist automatically stops machine swing at operator-defined preset points. Simply swing to the desired stopping point and activate using the machine monitor or a preset joystick button. As you get closer, the machine will automatically decelerate and not allow swing past the set point. Swing Assist helps you hit more repetitive swing targets to help reduce fuel use and improve cycle times.
• Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
• Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.

Work in Comfort

• Choose between a deluxe and premium cab. Both provide a comfortable, ergonomic work environment.
• The cab has a wide seat that adjusts for operators of all sizes.
• Get in and out of the cab easier using the tilt-up left console.
• Control the machine comfortably with easy-to-reach controls all located in front of you.
• Standard automatic climate control keeps you at the right temperature all shift long.
• Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
• Connect to personal devices via the standard radio’s USB ports and Bluetooth^® technology.
• Optional auxiliary relay powers on and turns off CB radios, beacon lights, and other attachments without you taking your hands off the joysticks.
• Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.

Reliable, Durable, and Versatile

• Count on your machine to withstand wear throughout the years. Boom, sticks, and other high-stress areas are reinforced with thick multi-plate fabrications, castings, and forgings to help ensure quality and reliability.
• The upper frame uses specially designed mountings to support the heavy-duty cab and the lower frame is reinforced to help enhance component durability.
• Work up to 3000 m (9,840 ft) above sea level without de-rating.
• Don’t let the temperature stop you from working. The machine has a standard cold start capability down to -18° C (0°F).
• Auto warm up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
• Standard autolube simplifies maintenance by automatically keeping the machine greased from the swing bearing and cab riser to the stick end.
• An optional 20 kW generator allows for magnet operation. Generator controls are fully integrated into the cab monitor.
• Expand your work capabilities with attachments for a variety of applications.

Maintenance

• Track your machine's filter life and maintenance intervals via the in-cab monitor.
• Scheduled Oil Sampling (S•O•S^SM) ports are located at ground level, helping simplify maintenance and allowing for quick, easy extraction of fluid samples for analysis.
• The long life of the air intake filter with pre-cleaner helps save on maintenance costs.
• The hydraulic oil filter helps provide high filtration performance, anti-drain valves to help keep oil clean when the filter is replaced, and long life with a 3,000-hour replacement interval.
• High-efficiency cooling fans run only when needed; you can program intervals so they automatically reverse to help keep cores clean without interrupting your work.
• Boost productivity with proactive service reminders. The integrated vehicle health management system alerts the operator with step-by-step service guidance and the parts needed to help reduce unnecessary downtime.

Safety Features

• Cab Avoidance helps you avoid contact between your worktool attachment and the cab.
• Standard 2D E-fence prevents your machine from moving outside operator-defined parameters.
• Ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
• Keep your machine secure with Operator ID. Use your PIN code on the monitor to enable the push-button starting feature.
• Enjoy great all-around visibility with the help of small cab pillars, large windows, and a flat engine hood design. Rearview and side-view cameras are standard.
• Standard 1800-lumen LED exterior lights illuminate your surroundings for a safer work environment.
• Thick impact-resistant windshields fulfill P5A standards.
• Service platform design provides easy, safe, and quick access to the upper service platform. The service platform steps use an anti-skid punch plate to help prevent slipping.
• The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
• Optional Operator Protective Guards (OPG) protect from falling and flying debris.
• In an emergency, lower the cab safely with the emergency cab lowering valve behind the cab riser or to the right of the seat. The valve located behind the cab riser is easily accessible.
• Boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic system unexpectedly lose pressure.
• Make service work more accessible and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine pump, battery, and radiator compartments to enhance visibility.

Sustainability

• The Cat^® C7.1 diesel engine U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 and Korea Stage V.
• Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
• Auto Engine Speed Control helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
• Cat^® 2D E-fence keeps the front linkage within a predefined work area to avoid hazards such as traffic - not only helping keep personnel safe and helps avoid repairs, downtime, and costly job site fines.
• Extended maintenance intervals help reduce downtime and decrease the amount of fluid and filters that are replaced over the machine's life.
• VisionLink^TM displays the CO₂ emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
• Remote Flash helps minimize downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
• Remote Troubleshoot helps decrease maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.

Attachments

• Clamshell Grapples: Perfect for bulk material handling, dredging, and excavation of loose or semi-compacted materials like sand, gravel, and debris. Their dual-opening jaws allow for precise loading and unloading. High-capacity and controlled operation make them ideal for ports, recycling, and heavy civil projects.
• Demolition and Sorting Grapples: Tackle larger debris or precisely sort materials into piles. These grapples are engineered for accuracy in demolition and material sorting, handling concrete, rebar, wood, and mixed debris. High clamping force and agile movement make them ideal for primary and secondary demolition and recycling operations.
• Orange Peel Grapples: Built for scrap and bulk material handling, Orange Peel Grapples excel with irregular, heavy loads like metal, rock, and waste. Their hydraulic tines provide superior grip and penetration. High-capacity and continuous rotation are perfect for scrap yards and transfer stations. Cat^® offers these grapples with a choice of different shell designs and tine options suited to various applications.
• Multi-Processors: A versatile tool for demolition, equipped with interchangeable jaws to handle concrete, steel, and rebar. Multi-Processors combine cutting, crushing and pulverizing capabilities in one attachment. Their modular design maximizes efficiency across a range of job site demands.
• Scrap and Demolition Shears: Rotating shears provide precision cutting for metal structures, pipes, rebar, and scrap, making them ideal for demolition and recycling. Their powerful jaws and fast cycle times ensure clean cuts and high productivity. Built for durability, they excel in heavy-duty steel processing.
