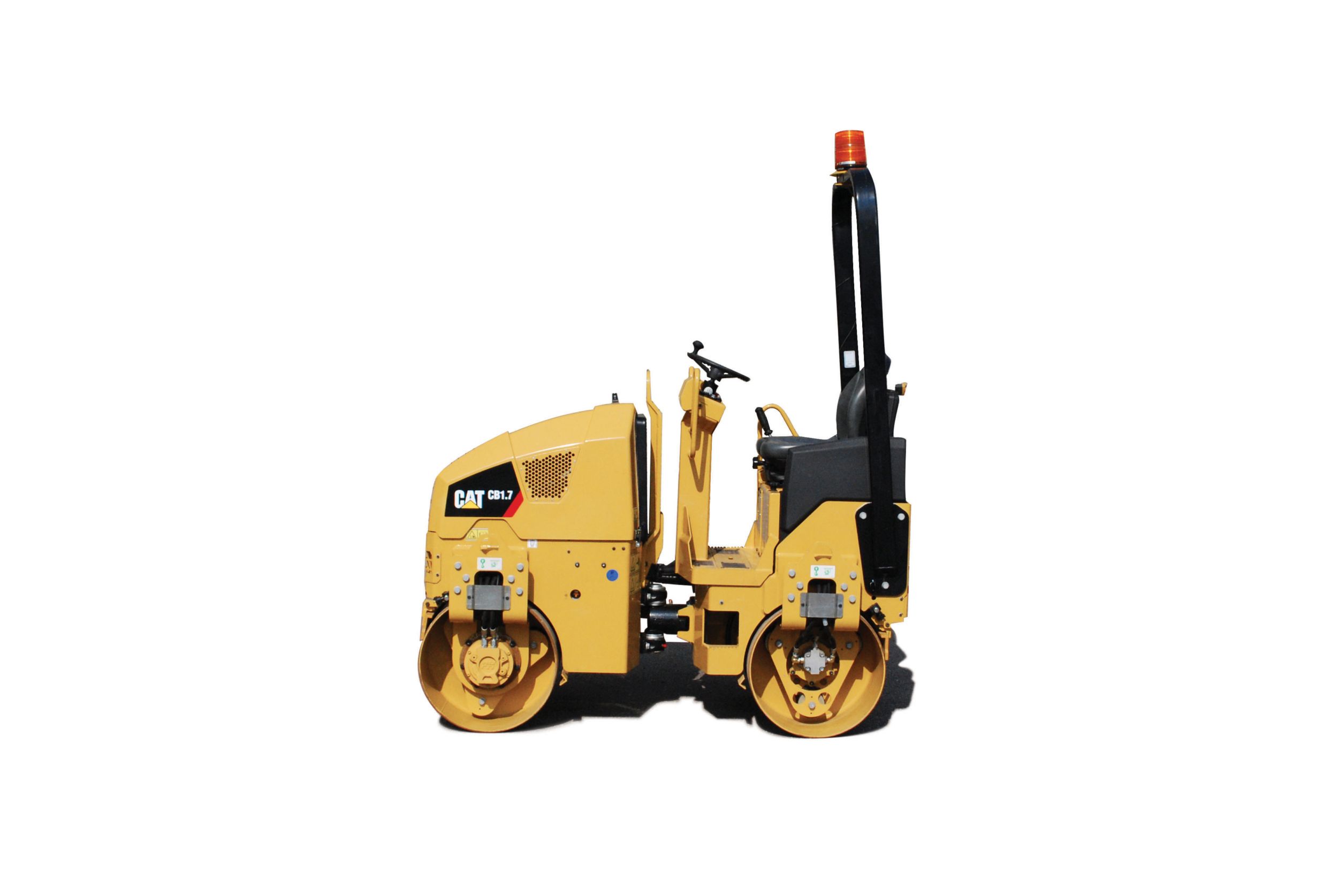

The CB1.7 is a 1.7 metric ton utility roller with 900 mm (35”) tandem vibratory drums.


Operating Weight 3538lb

Operating Specifications

Standard Compaction Width 35in
Curb Clearance 16in
Ground Clearance 10in
Travel Speed - Maximum 5.3mile/h
Static Linear Load 72lb/in


Gross Power 24.7HP
Engine Model Cat C1.1

Service Refill Capacities

Fuel Tank Capacity 7.9gal (US)
Water Spray Tank Capacity 38gal (US)

Vibratory System

Frequency 3420V/m
Nominal Amplitude - High 0.019in
Centrifugal Force per Drum - Maximum 3057lb


Overall Length 80in
Overall Width 40in
Maximum Machine Height 94.5in
Drum Width 35in
Drum Diameter 22.5in

Standard Equipment

Optional Equipment

  • Battery Disconnect Switch
  • Bio-hydraulic Oil
  • Lights, working, roading, IR
  • Light Guard
  • Non-suspension Seat
  • Product Link
  • ROPS, Fixed
  • ROPS, Folding
  • Single Point Lift
  • Suspension Seat
  • Warning Beacon
