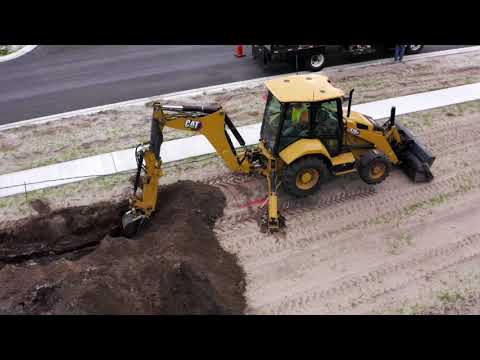

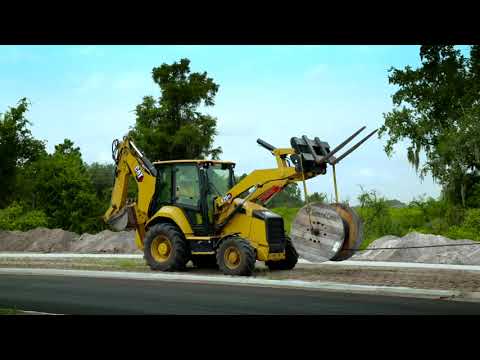

420 XE Backhoe Loader

Engine

Net Power - SAE J1349 92HP
Displacement 220in³
Engine Model C3.6 74.5 kW (100 hp) Electronic Turbo Intercooled
Net Power Rating at 2,200 rpm - ISO 9249 91HP
Power Rating Conditions - No De-Rating Required Up To 10000ft
Net Torque Rise - 1,400 rpm - SAE J1349 47%
Ratings at 2,200 rpm - Gross Power SAE J1995 102HP
Ratings at 2,200 rpm - Gross Power ISO 14396 100HP
Net Power Rating at 2,200 rpm - SAE J1349 92HP
Net Torque Rise - 1,400 rpm - SAE J1349 322ft-lb
Emissions Engine meets Tier 4 Final/Stage V emission standards.
Net Peak Power - 1,800 rpm - ISO 9249 105HP
Dimensions - Bore 3.86in
Dimensions - Stroke 4.72in
Net Peak Power Rating @ 1,800 rpm - SAE J1349 105HP

Backhoe

Dig Depth - Standard 14ft

Weights

Operating Weight - Maximum 24251lb
Cab - ROPS/FOPS 320lb
Ride Control 33lb
Air Conditioning 99lb
Note Machine configuration: standard stick hoe, OROPS canopy, AWD power shift transmission, 0.96 m³ (1.25 yd³) GP (General Purpose) loader bucket, 610 mm (24 in) standard duty hoe bucket, front 340/80-18 and rear 500/70-24 tires, 240 kg (530 lb) counterweight,
MP Bucket (0.96 m3/1.25 yd3) - With Fold-Over Forks 2017lb
Operating Weight - Maximum - ROPS Capacity 24251lb
MP Bucket (0.96 m3/1.25 yd3) - Without Fold-Over Forks 1642lb
Power-Shift Transmission STD
Extendible Stick (excludes ft. counterweight) 595lb
Counterweights, base - Maximum 1014lb
Counterweights, base 256lb
Loader QC 540lb
All-Wheel Drive STD
Operating Weight (estimated) 17271lb
Counterweights, base - Stackable, one 529lb

Hydraulic System

Pump Type Variable-flow, Axial Piston
System Pressure - Loader 3626psi
Pump Capacity at 2,200 rpm 49.4gal/min
System Pressure - Backhoe 3626psi
Type Closed Center

Transmission

Power-Shift Transmission with LTC - Optional - Forward - 2nd 5.8mile/h
Power-Shift Transmission with LTC - Optional - Forward - 6th LTC* 25mile/h
Power-Shift Transmission with LTC - Optional - Forward - 5th LTC 18mile/h
Power Shift Transmission - Standard - Forward – 3rd 12mile/h
Power Shift Transmission - Standard - Reverse - 2nd 7.7mile/h
Power-Shift Transmission with LTC - Optional - Reverse - 3rd 17mile/h
Power-Shift Transmission - Optional - Forward - 2nd 5.8mile/h
Power-Shift Transmission - Optional - Reverse - 1st 3.7mile/h
Power-Shift Transmission with LTC - Optional - Forward - 4th 12mile/h
Power Shift Transmission - Standard - Forward - 1st 3.7mile/h
Power-Shift Transmission with LTC - Optional - Forward - 5th 17mile/h
Power-Shift Transmission - Optional - Reverse - 2nd 7.7mile/h
Power-Shift Transmission with LTC - Optional - Reverse - 1st 3.7mile/h
Power-Shift Transmission with LTC - Optional - Forward - 1st 3.7mile/h
Power-Shift Transmission - Optional - Reverse - 3rd 17mile/h
Power Shift Transmission - Standard - Reverse - 1st 3.7mile/h
Power-Shift Transmission - Optional - Forward - 3rd 8mile/h
Power Shift Transmission - Standard - Reverse - 3rd 17mile/h
Power-Shift Transmission with LTC - Optional - Forward - 6th 25mile/h
Power Shift Transmission - Standard - Forward - 4th 25mile/h
Power Shift Transmission - Standard - Forward - 2nd 5.8mile/h
Power-Shift Transmission with LTC - Optional - Forward - 3rd 8mile/h
Power-Shift Transmission with LTC - Optional - Reverse - 2nd 7.7mile/h
Power-Shift Transmission - Optional - Forward - 6th 25mile/h
Power-Shift Transmission - Optional - Forward - 4th 12mile/h
Power-Shift Transmission - Optional - Forward - 5th 17mile/h
Power-Shift Transmission - Optional - Forward -1st 3.7mile/h
Note (2) *Limited by engine speed to 40 km/h (25 mph).
Note (1) Travel speeds of two wheel drive backhoe loader at full throttle, when equipped with 500/70-24 rear tires.

Axle Ratings

Rear Axle - Dynamic 22046lb
Front Axle, AWD - Dynamic 19841lb
Front Axle, AWD - Static 51808lb
Rear Axle - Static 58422lb

Steering

Bore 2.6in
Power Steering Hydrostatic
Rod Diameter 1.6in
Type Front Wheel Steering
Stroke 4.2in
Axle Oscillation 11°
Cylinder One Double-Acting

Service Refill Capacities

Fuel Tank 42.3gal (US)
Engine Oil - With Filter 2.4gal (US)
Hydraulic Tank 11.1gal (US)
Hydraulic System 25.1gal (US)
Cooling System with Air Conditioning 4.8gal (US)
Rear Axle 4.2gal (US)
Diesel Exhaust Fluid (DEF) 5gal (US)
Rear Axle - Planetaries 0.4gal (US)
Transmission - Power Shift - AWD 5gal (US)
Transmission - Power Shuttle - AWD 4.8gal (US)
Front Axle (AWD) - Planetaries 0.2gal (US)
Front Axle (AWD) 2.9gal (US)

Standard Equipment

  • Standard Equipment
    • Adjustable auxiliary controls, backhoe loader
    • Air cleaner
    • Alarm, back-up
    • Audible system fault alarm
    • Automatic Engine Speed Control (AESC)
    • Battery, maintenance-free, 850 CCA
    • Battery disconnect switch
    • Boom transport lock
    • Brace, lift cylinder
    • Brake, parking, Spring Applied Hydraulically Released (SAHR)
    • Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
    • Bucket level indicator
    • Canopy, ROPS/FOPS
    • Cat cushion swing system
    • Coat restraint
    • Coolant/antifreeze, extended life
    • Dome light (cab only)
    • Diagnostic port for engine, machine and gauge cluster Electronic Control Modules
    • Differential lock, loader joystick
    • Drink holders, two
    • Engine, Cat C3.6 (Direct Injection Turbocharged), meets Tier 4 Final/Stage V emission standards, Selective Catalytic Reduction, Diesel Oxidation Catalyst (DOC)
    • Engine enclosure, sound suppression, removable side panels
    • Face seals, O-ring
    • Fan, suction and guard
    • Fast reversing shuttle, all gears
    • Fenders, rear
    • Filters, spin-on: fuel, engine oil, transmission oil, water separator
    • Filters, bowl and cartridge: hydraulic fluid
    • Flashing hazards/signal lights
    • Floor mat
    • Four wheel drive
    • Four wheel drive shaft guard
    • Fuel tank, fully enclosed
    • Fully hinged front grill for cooling package cleaning access
    • Gauge cluster: coolant temperature, fuel level, torque converter temperature, DEF level
    • Ground level fuel fill and DEF fill
    • Halogen lights, working (2 front, 2 rear)
    • High ambient cooling package
    • Hood lock, inside cab
    • Hydraulic Lock Out, loader, backhoe, auxiliary hydraulics
    • Hydraulic hose, XT
    • Hydraulic oil cooler
    • Hydraulic oil level sight gauge
    • Hydraulic valves, loader 2 function
    • Hydraulic valves, backhoe 4 function
    • Hydraulics, load sensing with variable displacement piston pump
    • Indicator lights: wait to start, water in fuel, engine warning, warning lamp, emissions module malfunction, low battery/charging system warning, high hydraulic oil temperature: LCD warnings: engine oil pressure, machine locked, service due, air filter blocked, high coolant temperature, auto idle shutdown, high torque converter temperature, hydraulic filter bypass
    • Instrument panel lights
    • Key start/stop system
    • LCD operator display with soft key controls: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, maintenance intervals, ECM/system info
    • Loader, EH Parallel Lift
    • Loader, Programmable Kick Out
    • Loader, Programmable Return To Dig
    • Loader, single tilt
    • Mirror, interior, rearview
    • One-touch low idle
    • Open circuit breather
    • Pattern changer, in cab
    • Power receptacle, 12 volt, 2 internal, 1 external
    • Power receptacle, 5 volt USB, 1 internal
    • Power steering, hydrostatic
    • Product Link, satellite, network manager
    • Product Link, cellular, network manager
    • Seat belt, retractable, 51 mm (2 in)
    • Seat mounted joystick controls: backhoe and loader, EH operated, excavator style with pattern changer
    • Socket, two roof
    • Stabilizers, EH Control, Auto-UP
    • Stabilizer shoes, street
    • Steering knob
    • Seat, air suspension, vinyl cover, with armrest
    • Starting system, glow plugs
    • Steering column, tilting, telescopic
    • Storage compartment, lockable
    • Storage tray
    • Stop and tail lights
    • Swing transport lock
    • Tires
    • Toolbox, external, lockable
    • Torque converter
    • Throttle, hand and foot, electronic
    • Transmission, 4 speed, powershift
    • Transmission neutralizer switch
    • Transport tie-downs
    • Vandalism locks, four
    • Warning horn, electric

Optional Equipment

  • Optional Equipment
    • Auxiliary hydraulics, loader, adjustable flow
    • Auxiliary hydraulics, rear, adjustable flow
    • Battery, additional, 850 CCA
    • Cab, deluxe
    • Cold weather fuel (–30° C/–22° F)
    • Cold weather package, including additional battery, engine block heater, radiator antifreeze, cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
    • Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
    • Fenders, front with integral steps
    • Guard, boom protection plate
    • Guard, stabilizer, rock
    • Hydraulic valves, loader with auxiliary roller thumb control (3rd valve for MP or Quick Coupler)
    • Hydraulic valves, backhoe (5th and 6th function)
    • Hydraulic lines, combined function auxiliary
    • LED lights, working (2 front, 2 rear)
    • Quick Coupler, hydraulic, dual lock
    • Quick Coupler, manual, dual lock
    • Quick Coupler, manual, pin lock
    • Radio and CD player, Bluetooth®
    • Ride Control
    • Rotating beacon, magnetic mount
    • Seat, air suspension, fabric with armrest
    • Seat, air suspension, fabric with armrest, heated
    • Seat belt, retractable, 75 mm (3 in)
    • Security system, Bluetooth
    • Security system, operator display
    • Side mirrors, cab, external
    • Single Tilt Loader Coupler, Integrated Tool Carrier (IT) Interface
    • Stabilizer pads, reversible
    • Stick, extendible
    • Touch screen LCD Display: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, maintenance intervals, ECM/system info
    • Transmission, AutoShift with lock-up torque converter, 6 speed
    • Vandalism protection, gauge cover
    • Work Tool Attachments such as buckets, forks, material handling arms, augers, hammers, brooms, cold planers and vibratory plate compactors. See your Cat dealer for more information.
