PR172 Manual Angle Power Box Rake

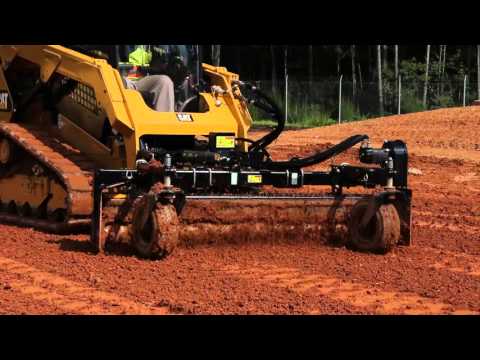

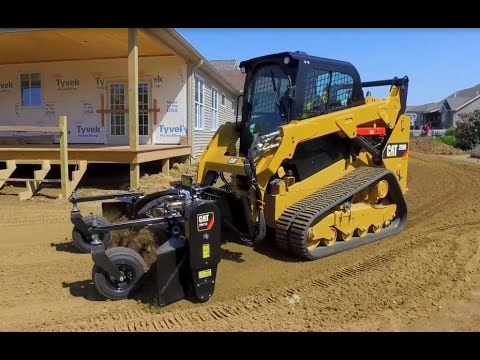

Cat® Power Box Rakes are ideal for clearing and preparing soil in general construction trench restoration, golf course construction and athletic field maintenance. They offer the versatility to de-thatch, remove old lawns and weeds, grade, level, rake, remove debris and prepare seedbeds with one work tool. Its angling ability allows the operator to windrow collected debris for easy pickup and removal. The consistent milling action creates an ideal seedbed for excellent germination results, laying the groundwork for a perfect lawn. Wet, dry, weedy, hard and rocky soil can be dried, flattened, pulverized and conditioned for seed in one step.

Dimensions

Roller Width 72in
Overall Width 81in
Maximum Angle - Right or Left 20 degrees
Raking Width at Maximum Angle 68in
Overall Length 64in
Overall Height 33.3in
Weight 899.5lb
Required Hydraulics Standard Flow
Optimal Hydraulic Flow 49-86 L/min (13-23 gpm)
Optimal Hydraulic Pressure 230 bar (3335.9 psi)

Standard Equipment

Optional Equipment
