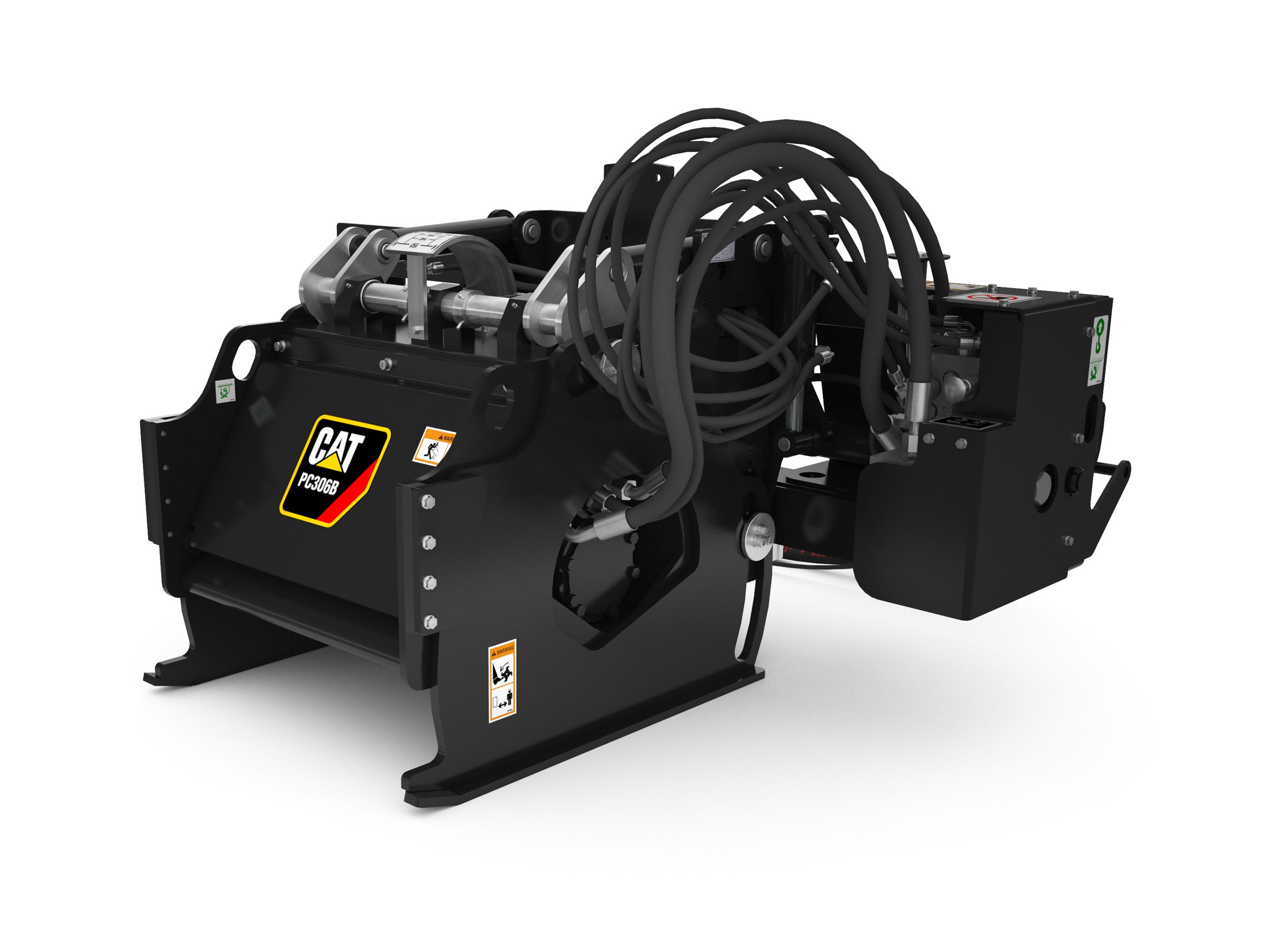

PC306B High Flow XPS Cold Planer

Cat® Cold Planers are designed for small paving jobs in residential and commercial applications and are primarily used to economically restore asphalt and concrete surfaces. They are ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited. The Cat Cold Planers are designed for use on Cat Skid Steer Loaders, Multi Terrain Loaders, Compact Track Loaders, Compact Wheel Loaders and Backhoe Loaders.

Dimensions

Working Width 23.6in
Maximum Cutting Depth 6.7in
Required Hydraulics High Flow XPS
Overall Width 73.1in
Overall Length 48.8in
Overall Height 43.3in
Weight 2061.3lb
Optimal Hydraulic Flow 100-125 L/min (26-33 gpm)
Optimal Hydraulic Pressure 230-280 bar (3330-4000 psi)
Drum Speed 160 rpm
Optional Drum Widths/Depths 80-200-600/180 mm (3/8-24/7 in)
Tilt Angle Range +/- 8 degrees
Side Shift Travel 29.5in
Conical Bits 60
Standard Bit Type All Purpose

Standard Equipment

Optional Equipment
