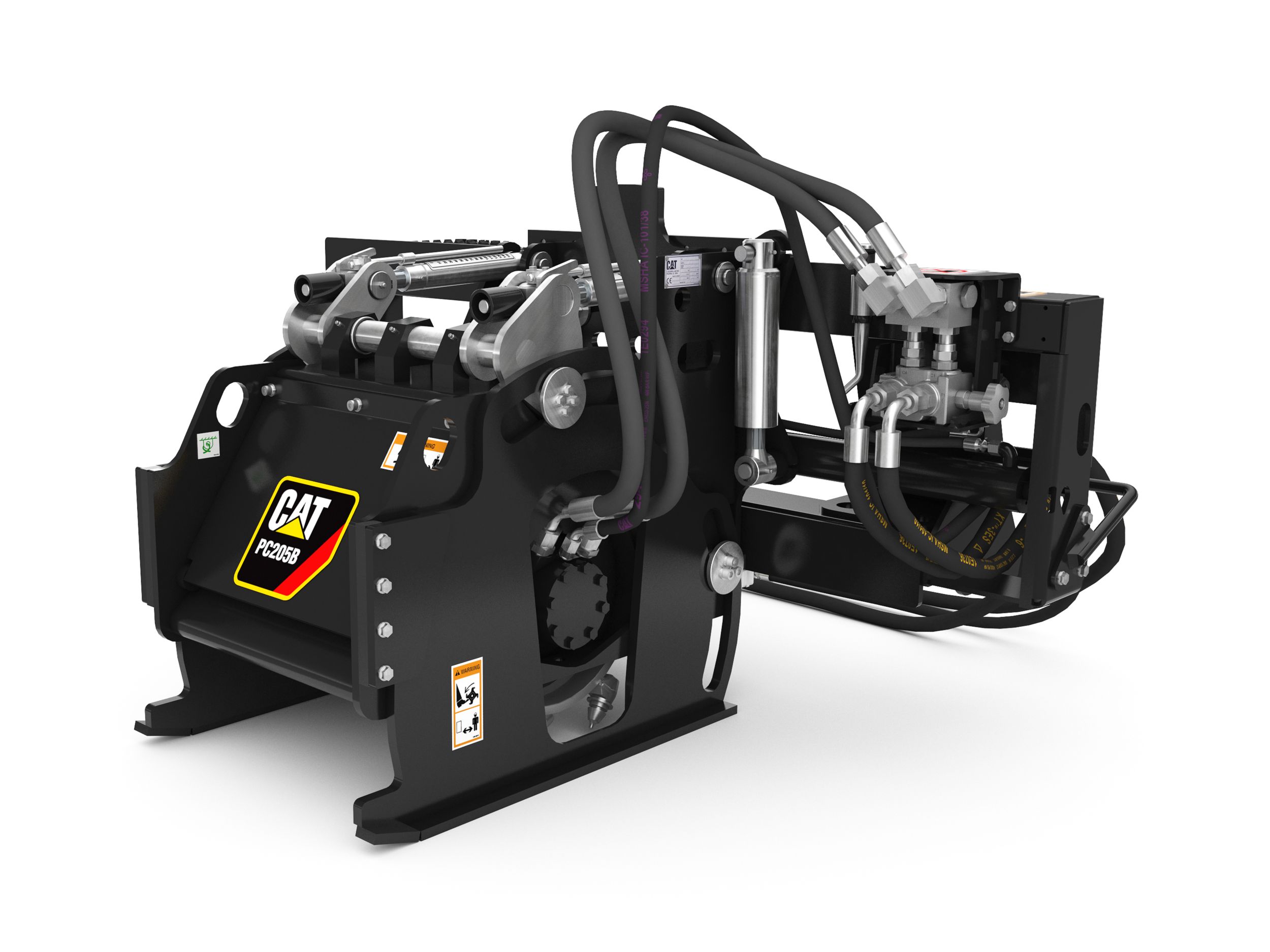

PC205B High Flow Cold Planer

Cat® Cold Planers are designed for small paving jobs in residential and commercial applications and are primarily used to economically restore asphalt and concrete surfaces. They are ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited. The Cat Cold Planers are designed for use on Cat Skid Steer Loaders, Multi Terrain Loaders, Compact Track Loaders, Compact Wheel Loaders and Backhoe Loaders.

Dimensions

Working Width 17.7in
Maximum Cutting Depth 5.9in
Required Hydraulics High Flow
Overall Width 68.1in
Overall Length 46.6in
Overall Height 42.5in
Weight 1609.4lb
Optimal Hydraulic Flow 80-117 L/min (21-31 gpm)
Optimal Hydraulic Pressure 160-240 bar (2320-3480 psi)
Drum Speed 142-250 rpm
Optional Drum Widths/Depths 80/200-450/150 mm (3/8-18/6 in)
Tilt Angle Range +/- 8.5 degrees
Side Shift Travel 25.6in
Conical Bits 42
Standard Bit Type All Purpose

Standard Equipment

Optional Equipment
