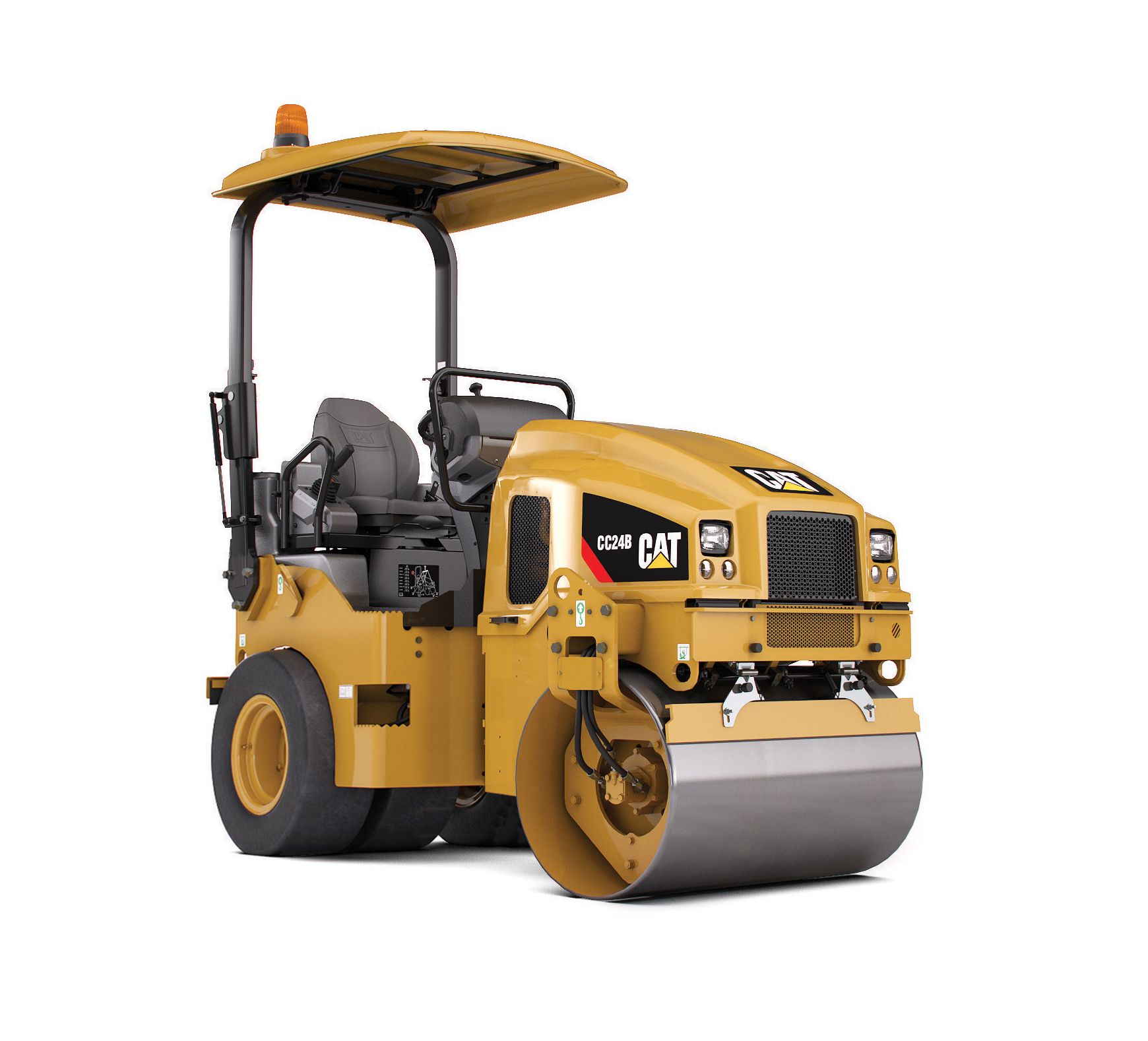

The CC24B is a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. The CC24B provides greater production capabilities with its 1200 mm (47″) wide front drum and 4 rear pneumatic tires. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions or other similar sized jobs.
| Operating Weight | 5380lb |
| Maximum Weight at Front Drum | 2857lb |
| Maximum Weight at Rear Drum | 2524lb |
| Standard Compaction Width | 47in |
| Curb Clearance | 20in |
| Turning Radius - Inside Drum Edge | 8ft |
| Ground Clearance | 11in |
| Static Linear Load | 57lb/in |
| Travel Speed - Maximum | 6.5mile/h |
| Gross Power | 36.2HP |
| Engine Model | C1.5 |
| Fuel Tank Capacity | 17gal (US) |
| Water Spray Tank Capacity | 52gal (US) |
| Overall Length | 101in |
| Wheel Base | 71in |
| Overall Width | 52in |
| Drum Width | 47in |
| Maximum Machine Height | 106in |
| Drum Diameter | 28in |
| Nominal Amplitude - High | 0.021in |
| Centrifugal Force per Drum - Maximum | 7378lb |
| Frequency | 63/55/42 Hz (3,780/3,300/2520 vpm) |
| Centrifugal Force per Drum - Minimum | 3282lb |
