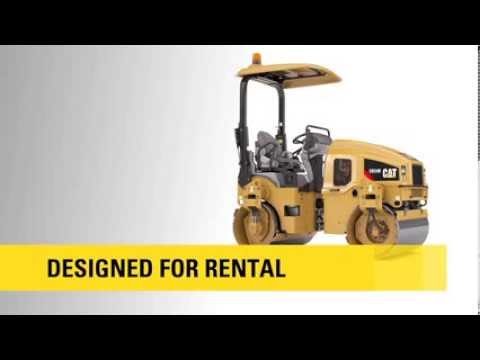

The CB22B is a 2.5 metric ton machine with 1000 mm (39″) drums. This versatile machine can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production compactors. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions or other similar sized jobs.
| Operating Weight | 5629lb |
| Maximum Weight at Rear Drum | 2960lb |
| Maximum Weight at Front Drum | 2669lb |
| Standard Compaction Width | 39in |
| Curb Clearance | 24in |
| Turning Radius - Inside Drum Edge | 8.75ft |
| Ground Clearance | 11in |
| Static Linear Load | 72lb/in |
| Travel Speed - Maximum | 7.5mile/h |
| Gross Power | 36.2HP |
| Engine Model | C1.5 |
| Fuel Tank Capacity | 17gal (US) |
| Water Spray Tank Capacity | 62gal (US) |
| Overall Length | 101in |
| Wheel Base | 71in |
| Overall Width | 44in |
| Drum Width | 39in |
| Drum Diameter | 28in |
| Maximum Machine Height | 102in |
| Nominal Amplitude - High | 0.021in |
| Centrifugal Force per Drum - Minimum | 2878lb |
| Centrifugal Force per Drum - Maximum | 6475lb |
| Frequency | 63/55/42 Hz (3,780/3,300/2520 vpm) |
