PT40

The PT40 is designed specifically to meet the needs of the experts in the machinery moving and rigging industry, its compact size and impressive capabilities also make it an excellent choice for moving heavy loads in manufacturing and heavy industrial applications. The PT40 has an impressive lift capability of 20 tons to a height of 20 feet.





General

Load Capacity 40,000 lbs
Width 72 In
Height 88 In
Engine GM 3.0L 91hp at 3000 rpm
Transmission Hydrostatic, 0-6 mph infinitely variable
Hydraulics Load sensing, pressure compensated
Electrical Sealed IP66 minimum
Tires 28x10x22, front duals, rear singles
Gradeability 24% with 40,000 lb load
Tractive Effort 20,000 lbs
Weight 40,700 lbs complete
  • Industrial telehandler with 40,000 lb capacity at 24-inch load center

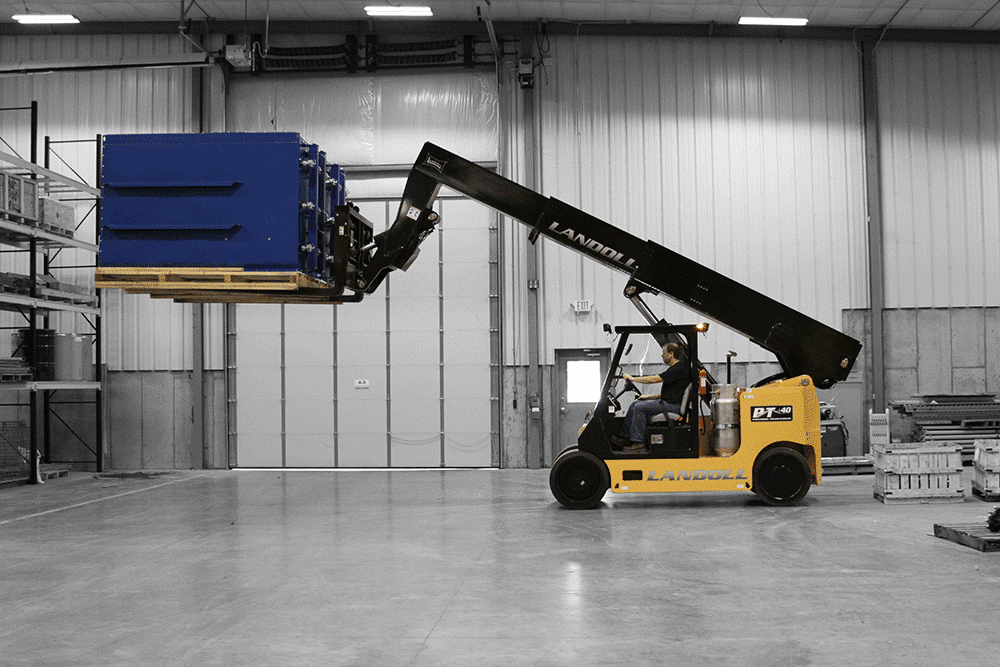

  • Compact lowered height, can lift 20 tons to 20 feet
  • 88″ tall, 6′ wide, 20′ reach, 20′ lift, 27′ to jib eye and 6 tons of removable counterweight
  • All boom movements including TRUE VERTICAL LIFT, and TRUE HORIZONTAL REACH are controlled by a single joystick
  • Fork tilt is auto-leveling with manual override
  • Fine-feathering hydraulics ensure smooth and precise load placement
  • 24% Gradability
  • Radio remote control allows many jobs to be completed with a single operator
